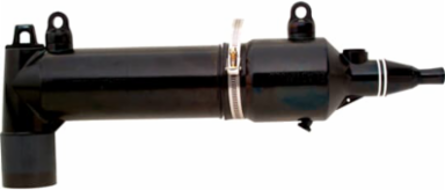

Thomas & Betts 168AFLR3-B5270 FUSED LB ELBOW, 8.3KV, 65-80A
- MPN: 168AFLR3-B5270
- UPC: 075114374521
- PPN: T-B-168AFLR3-B5270
- UNSPSC: 39121421
CAD
$2729.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Direct Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 4/0 AWG Stranded/Compressed.
Specifications
Additional Information
| Application | 8.3kV, 65 and 80 Amps |
|---|---|
| Color | Black |
| Effective Date | 20180607 |
| Material | Housing EPDM Rubber ; Lug BiMetal |
| Product Type | Fuse Housing |
| Special Functions | Two Direct Test Ports, Large Housing |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Insulation Material | EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Approximately 8-7/8 inch wide x 21 inches long |
| Standards | IEEE 386 Standard |
| Voltage Rating | 15.5 kV |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
