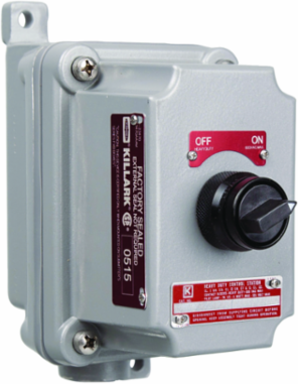

Killark FXCS-1S2A1 Factory Sealed 2-Position Selector Switch Control Station - Hub Size 1/2 Inch
- MPN: FXCS-1S2A1
- UPC: 783936201047
- PPN: HBL-FXCS-1S2A1
- UNSPSC: 39122216
CAD
$1923.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
FXCS Series - Aluminum Dead-End Maintained Contact 2-Position Selector Switch Control Station - Factory Sealed - "Off - On"/Blank Nameplate -Hub Size 1/2 Inch - 1NO/1NC Contact Rating
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Key Specifications
- Number of Poles
- 1
- Special Features
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
- Country of Origin
- United States
- Color
- Black
- Dimensions
- 6.63 in x 6 in x 4.38 in
- Height
- 4.38 in
- Length
- 6.63 in
- Action
- Maintained
- Amperage Rating
- 10 A
- Contact Rating
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
- Nema Rating
- 3
- Type
- Factory Sealed
- Description - Invoice
- BOX CVR 2POS STAND 1/2" DEAD
- Harmonization Code
- 8536509025
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Factory Sealed
- Factory Sealed
- Hub Pattern
- Dead-End
- Series
- FXCS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Size6.63 in x 6 in x 4.38 in
ARRA CompliantContact Manufacturer
Back Box TypeFXB
Depth5.62 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size1/2"
Width6 in
Actuator2 Position Selector Switch
ApplicationSEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
Frequency Rating50/60 Hz
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714, LR11712
Gross Weight with Packaging4.4
UL File NumberE53360, E12379
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936201047
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
