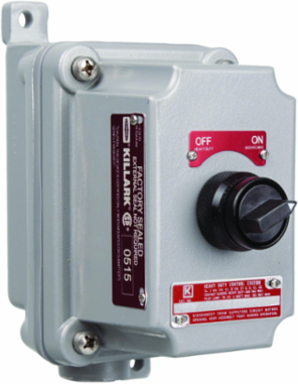

Killark FXCS-2S2A5 Aluminum 2-Position Selector Switch Control Station, Hub Size 3/4 Inch, 10 A
- MPN: FXCS-2S2A5
- UPC: 783936201405
- PPN: HBL-FXCS-2S2A5
- UNSPSC: 39122216
CAD
$1246.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
FXCS Series - Aluminum Dead-End Maintained Contact 2-Position Selector Switch Control Station - Factory Sealed - "Off - On"/Blank Nameplate -Hub Size 3/4 Inch - 2NO/2NC Contact Rating
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Key Specifications
- Country of Origin
- United States
- Depth
- 5.62 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 3/4"
- Action
- Maintained
- Amperage Rating
- 10 A
- Color
- Black
- Number of Poles
- 1
- Special Features
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
- Width
- 6 in
- Mounting Type
- Bi-Directional Ductile Mounting Lugs
- Number Of Poles
- 1
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714, LR11712
- Gross Weight with Packaging
- 4.5
- UL File Number
- E53360, E12379
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936201405
- NAICS Code
- 3359326103
Back Box TypeFXB
Dimensions6.63 in x 6 in x 4.38 in
Height4.38 in
Length6.63 in
Actuator2 Position Selector Switch
ApplicationSEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
MountingBi-Directional Ductile Mounting Lugs
Size6.63 in x 6 in x 4.38 in
TypeFactory Sealed
Frequency Rating50/60 Hz
Nema Rating3
ARRA CompliantContact Manufacturer
Description - InvoiceBOX CVR 2POS STAND 3/4"DEAD
Harmonization Code8536509025
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Factory SealedFactory Sealed
Hub PatternDead-End
SeriesFXCS Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
