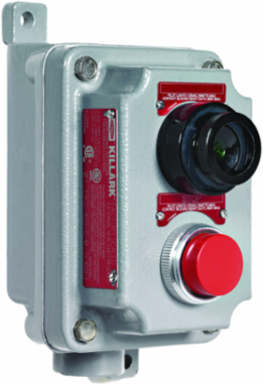

Killark FXCS-1B13-C-MB Seal-XM Aluminum Control Station - 1/2 Inch Hub, Red Button, NEMA 3 Rated
- MPN: FXCS-1B13-C-MB
- UPC: 783936104898
- PPN: HBL-FXCS-1B13-C-MB
CAD
$1188.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
FXCS Series - Seal-XM - Aluminum Dead-End Momentary Contact Single Push Button and Pilot Light Control Station - Factory Sealed - 1/2" Hub - Red Button - Clear Lens- Group B Rated
Features
- Incorporates Factory Sealed Universal contact blocks and GOB3 LED pilot light devices.
- External sealing fittings typically not required, reducing installation time and cost.
- No seal plate between the electrical device and back box allows direct wiring to contact terminals.
- NEMA 3 weatherproof.
- Grounding boss supplied in the splice box.
- Sold as a complete unit.
- Standard finish is a gray epoxy powder baked on for ultimate corrosion resistance.
- More wiring room in back box.
- Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified.
Specifications
Key Specifications
- Country of Origin
- United States
- Color
- Red P.B., White Light
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Action
- Momentary
- Amperage Rating
- 10 A
- Frequency Rating
- 50/60 Hz
- Type
- Factory Sealed
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D25D250
- Factory Sealed
- Factory Sealed
- Series
- FXCS Seal-XM Series
- BOX SIZE
- (in)
- NAICS Code
- 3359326103
Back Box TypeFXB
Depth4.59 in
Hub Size1/2"
ActuatorPilot Light & Pushbutton
ApplicationSEAL-XM Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
Nema Rating3
ARRA CompliantContact Manufacturer
Description - InvoiceMOM PB RED & PL CLR LENS GR.B 1/2" DE
Harmonization Code8536509035
MSDS FlagNo
CSA File NumberLR11714, 2493125
Hub PatternDead-End
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936104898
Certifications
- EU RoHS Indicator
- Contact Manufacturer
