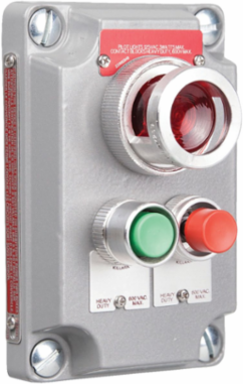

Killark XCS-0A15D Aluminum Control Station Cover with Dual Mini Push Buttons & LED Light, 7.875 Inch x 5.875 Inch x 4 Inch
Killark XCS-0A15D Aluminum Control Station Cover with Dual Mini Push Buttons & LED Light, 7.875 Inch x 5.875 Inch x 4 Inch
- MPN: XCS-0A15D
- UPC: 783936960333
- PPN: HBL-XCS-0A15D
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1196.97/ EA
Description
XCS Series- Cover with Device - Momentary Contact Two Mini Red-Green Push Buttons And Red LED Pilot Light
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Back Box Type
- SWB
- Depth
- 2-3/32
- Each - Width
- 5.875 in
- Height
- 4 in
- Action
- SP (per circuit)
- Amperage Rating
- 10 A
- Color
- Green-Red P.B., Red Light
- Number of Poles
- 2
- Special Features
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Width
- 5.875 in
- Number Of Poles
- 2
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 1.37
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.850 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
Country of OriginUS
Dimensions7.875 in x 5.875 in x 4 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length7.875 in
ActuatorPilot Light and Momentary Pushbutton
ApplicationHazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
Contact Rating60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC.
Size7.875 in x 5.875 in x 4 in
TypeAluminum Cover With LED Pilot Light And Two Mini Push Buttons
Frequency Rating50/60 Hz
ARRA CompliantContact Manufacturer
Description - InvoiceDOUBLE PB RED-GRN AND PL CVR RED LED
Harmonization Code8536509035
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE53360
SeriesXCS Series
BOX SIZE5.500x6.880x3.750 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936960333
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
