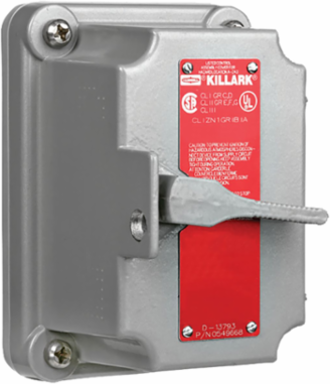

Killark FXS-1D Aluminum 1-Pole Tumbler Switch Cover - 30A, NEMA 3, 6.75 inch x 6 inch x 5 inch
- MPN: FXS-1D
- UPC: 783936194745
- PPN: HBL-FXS-1D
- UNSPSC: 39122211
CAD
$896.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FXS Series - Aluminum 1-Pole Tumbler Switch Cover With Device - Factory Sealed - 30A
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 3.15 in |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Length | 6.75 in |
| Actuator | Lever |
| Application | FXS tumbler switches are suitable for applications where making, breaking, or changing connections in an electrical circuit is required and where conditions of load do not exceed the switch ratings. |
| Number of Poles | 1 |
| Special Features | Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. |
| Width | 6 in |
| Nema Rating | 3 |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | TUMBL SWITCH W/ CVR 1P 30A |
| Harmonization Code | 8536509040 |
| Lead Time | 15 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D250 |
| CSA File Number | LR11712 |
| UL File Number | E53360, E10501 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 |
| NAICS Code | 3353146111 |
| Back Box Type | FXB |
|---|---|
| Dimensions | 6.75 in x 6 in x 5 in |
| Height | 5 in |
| Action | SP |
| Amperage Rating | 30 A |
| Color | Gray |
| Size | 6.75 in x 6 in x 5 in |
| Type | Factory Sealed |
| Frequency Rating | 50/60 Hz |
| Number Of Poles | 1 |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 2.94 |
| Series | FXS Series |
| BOX SIZE | 0.000x0.000x0.000 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936194745 |
| Master Pack Description | Each |
