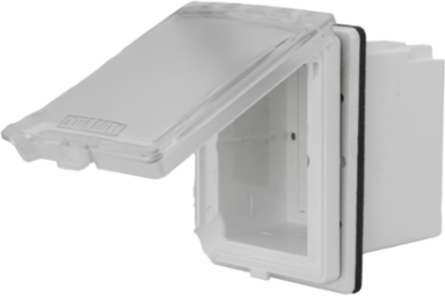

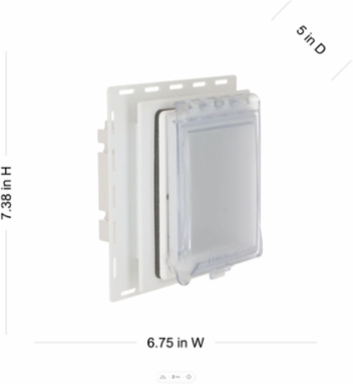

Taymac MR420CW Weatherproof In-Use Cover, 1-Gang, Nonmetallic, 4.98 x 6.75 x 7.38 Inch
- MPN: MR420CW
- UPC: 050169998304
- PPN: HBL-MR420CW
- UNSPSC: 39121304
CAD
$27.58
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1-Gang, 6-in-1 Weatherproof In-Use Cover, Horizontal/Vertical, Nonmetallic, White
Features
- Features aesthetically pleasing flat profile (recessed) for in-use in wet locations
- Meets Extra Duty® rating
- Can be installed for new or old work
- Compatible with all common siding types and materials such as vinyl, wood, stucco and brick/block
- Can be mounted horizontally or vertically
- Includes electrical box and optional siding flange
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Thailand
- Height
- 7.38 in
- Product Type
- Weatherproof
- Color
- White;Clear
- Cubic Capacity
- 249.075 cu.in
- Type
- Cover
- Installation Type
- Recessed
- Nema Rating
- NEMA 3R
- Description - Invoice
- 1G WP EXTRA DTY RECESSED WIU CVR WHT/CLR
- Harmonization Code
- 3925900000
- Sub Class Code
- D17D200
- NEC
- Compliant
- Series
- Outdoor Comforts® Series
- BOX SIZE
- 8.600x14.900x13.100 (in)
- Carton - Gross Weight per Pack
- 7.400 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4 EA
- Package Height
- 7.9 in
- Package Quantity
- 1 EA
- Package Width
- 6.4 in
- Pallet - SCC-14 Next Lower Level Sub Pack
- 50050169998309
- Pallet Height
- 48.000 in
- Pallet Weight
- 378.000 lb.
- NAICS Code
- 3359326105
Depth5 in
Mounting MethodMulti-directional
ApplicationIn Use;EXTRA DUTY®
Cover TypeIn-Use
StandardcULus Listed
Width6.75 in
Material typeNon-metallic
Class CodeD17
Freight Class Code06316009
Image Actual Or RepresentativeA
Collection NameOutdoor Comforts®
ConstructionNonmetallic
Base Unit of MeasureEA
Box Type1-Gang
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00050169998304
Package - Total Units1 EA
Package Length7.1 in
Package Weight1.6 lb.
Pallet - GTIN - Package70050169998303
Pallet - Total Units180 EA
Pallet Length45.300 in
Pallet Width39.400 in
Certifications
- Certified Listed
- cULus Listed
EU RoHS IndicatorNo
