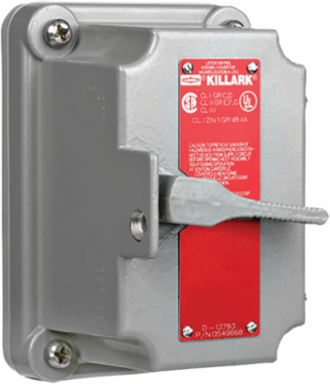

Killark FXS-2C Aluminum 2-Pole Tumbler Switch Cover - 20A, NEMA 3, 6.5 x 6.125 x 4.75 Inch
Killark FXS-2C Aluminum 2-Pole Tumbler Switch Cover - 20A, NEMA 3, 6.5 x 6.125 x 4.75 Inch
- MPN: FXS-2C
- UPC: 783936194769
- PPN: HBL-FXS-2C
- UNSPSC: 39122211
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$729.35/ EA
Description
FXS Series - Aluminum 2-Pole Tumbler Switch Cover With Device - Factory Sealed - 20A
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Specifications
- Country of Origin
- China
- Depth
- 3.15
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 6.5 in
- Actuator
- Lever
- Application
- FXS tumbler switches are suitable for applications where making, breaking, or changing connections in an electrical circuit is required and where conditions of load do not exceed the switch ratings.
- Number of Poles
- 2
- Special Features
- Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
- Width
- 6.125 in
- Nema Rating
- 3
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- TUMBL SWITCH CVR 2P 20A
- Harmonization Code
- 8536509040
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 3.2
- Series
- FXS Series
- BOX SIZE
- 4.380x6.630x6.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936194769
- Master Pack Description
- Each
Back Box TypeFXB
Dimensions6.5 in x 6.125 in x 4.75 in
Height4.75 in
ActionDP
Amperage Rating20 A
ColorGray
Size6.5 in x 6.125 in x 4.75 in
TypeFactory Sealed
Frequency Rating50/60 Hz
Number Of Poles2
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11712
UL File NumberE53360, E10501
Base Unit of MeasureEA
Carton - Gross Weight per Pack16.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
Certifications
- EU RoHS Indicator
- Contact Manufacturer
