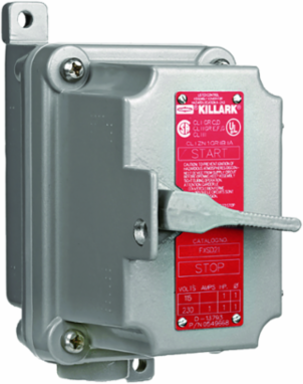

Killark FXS-11C Aluminum Dead-End 1-Pole Tumbler Switch - 20A, Hub Size 1/2 Inch, NEMA 3
- MPN: FXS-11C
- UPC: 783936194905
- PPN: HBL-FXS-11C
- UNSPSC: 39122211
CAD
$1075.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
FXS Series - Aluminum Dead-End 1-Pole Tumbler Switch Unit - Factory Sealed - Hub Size 1/2 Inch - 20A
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Key Specifications
- Country of Origin
- China
- Depth
- 3.15 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 6.63 in
- Actuator
- Lever
- Application
- FXS tumbler switches are suitable for applications where making, breaking, or changing connections in an electrical circuit is required and where conditions of load do not exceed the switch ratings.
- Number of Poles
- 1
- Special Features
- Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
- Width
- 6 in
- Nema Rating
- 3
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- TUMBL SWITCH 1/2" 1P20A DEAD
- Harmonization Code
- 8536509040
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 4.4
- Series
- FXS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Back Box TypeFXB
Dimensions6.63 in x 6 in x 4.38 in
Height4.38 in
ActionSP
Amperage Rating20 A
ColorGray
Size6.63 in x 6 in x 4.38 in
TypeFactory Sealed
Frequency Rating50/60 Hz
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11712
UL File NumberE53360, E10501
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936194905
NAICS Code3353146111
Certifications
- EU RoHS Indicator
- Contact Manufacturer
