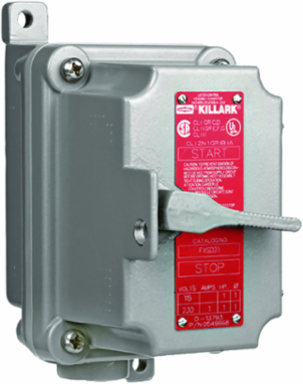

Killark FXS-15C Aluminum SPDT Tumbler Switch - 20A, 1/2 Inch Hub, NEMA 3, Dimensions 6.63 x 6 x 4.38 Inch
Killark FXS-15C Aluminum SPDT Tumbler Switch - 20A, 1/2 Inch Hub, NEMA 3, Dimensions 6.63 x 6 x 4.38 Inch
- MPN: FXS-15C
- UPC: 783936195018
- PPN: HBL-FXS-15C
- UNSPSC: 39122211
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1438.46/ EA
Description
FXS Series - Aluminum Dead-End SPDT (Center Off) Tumbler Switch Unit -Factory Sealed - Hub Size 1/2 Inch - 20A
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Specifications
- Country of Origin
- United States
- Depth
- 3.15
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 6.63 in
- Actuator
- Lever
- Application
- FXS tumbler switches are suitable for applications where making, breaking, or changing connections in an electrical circuit is required and where conditions of load do not exceed the switch ratings.
- Number of Poles
- 1
- Special Features
- Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
- Width
- 6 in
- Nema Rating
- 3
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- TUMBL SWITCH 1/2" SPDT20A DEAD
- Harmonization Code
- 8536509040
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 4.4
- Series
- FXS Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936195018
Back Box TypeFXB
Dimensions6.63 in x 6 in x 4.38 in
Height4.38 in
ActionSPDT (CNTR OFF)
Amperage Rating20 A
ColorGray
Size6.63 in x 6 in x 4.38 in
TypeFactory Sealed
Frequency Rating50/60 Hz
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11712
UL File NumberE53360, E10501
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
