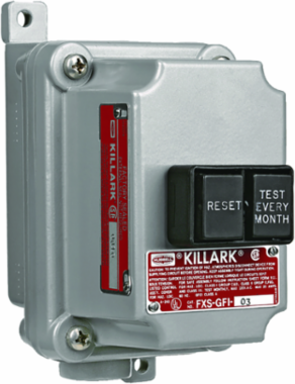

Killark FXS-GFI-2120 Aluminum Ground Fault Interrupter Unit 3/4 Inch Hub, 20A, NEMA 3, UL Listed
- MPN: FXS-GFI-2120
- UPC: 783936198392
- PPN: HBL-FXS-GFI-2120
- UNSPSC: 39122216
CAD
$2008.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FXS Series - Aluminum Feed-Thru Ground Fault Interrupter Unit - Factory Sealed - Hub Size 3/4 Inch - 20A/120Vac/60Hz - 4-6 Miliamp Trip Setting
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide Ground fault interrupting protection solutions in hazardous location areas. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 5-1/8 in |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Actuator | Gound Fault Interupter |
| Application | FXS ground fault interrupters are designed to interrupt a circuit when a ground fault is detected on equipment which may be handled by personnel in hazardous locations. |
| Number of Poles | 2 |
| Type | Aluminum Factory Sealed Ground Fault Interrupter |
| Nema Rating | 3 |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CLI FAC SEAL 3/4"FTW/GFICV(CS) |
| Harmonization Code | 8536308000 |
| Lead Time | 15 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D251 |
| CSA File Number | LR11712 |
| UL File Number | E53360, E10501 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936198392 |
| NAICS Code | 3353146111 |
| Back Box Type | FXB |
|---|---|
| Width | 3.688 in |
| Action | Push buttons |
| Amperage Rating | 20 A |
| Color | Gray |
| Special Features | Killark SEAL-X Series Factory Sealed Control Stations provide Ground fault interrupting protection solutions in hazardous location areas. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. |
| Frequency Rating | 50/60 Hz |
| Number Of Poles | 2 |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 5 |
| Series | FXS-GFI Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
