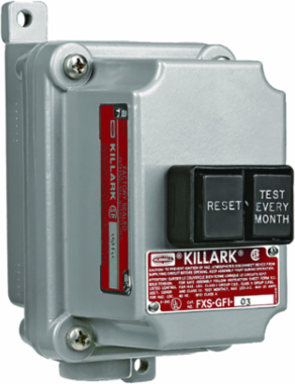

Killark FXS-GFI-2020 Aluminum GFI Unit 3/4 Inch Hub, 20A, 120V, 2 Poles, NEMA 3
Killark FXS-GFI-2020 Aluminum GFI Unit 3/4 Inch Hub, 20A, 120V, 2 Poles, NEMA 3
- MPN: FXS-GFI-2020
- UPC: 783936198385
- PPN: HBL-FXS-GFI-2020
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1773.45/ EA
Description
FXS Series - Aluminum Dead-End Ground Fault Interrupter Unit - Factory Sealed - Hub Size 3/4 Inch - 20A/120Vac/60Hz - 4-6 Miliamp Trip Setting
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide Ground fault interrupting protection solutions in hazardous location areas. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Specifications
- Back Box Type
- FXB
- Depth
- 5-1/8
- Each - Width
- 3.688 in
- Action
- Push buttons
- Amperage Rating
- 20 A
- Color
- Gray
- Special Features
- Killark SEAL-X Series Factory Sealed Control Stations provide Ground fault interrupting protection solutions in hazardous location areas. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
- Frequency Rating
- 50/60 Hz
- Number Of Poles
- 2
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11712
- UL File Number
- E53360, E10501
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Country of OriginUS
Width3.688 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ActuatorGound Fault Interupter
ApplicationFXS ground fault interrupters are designed to interrupt a circuit when a ground fault is detected on equipment which may be handled by personnel in hazardous locations.
Number of Poles2
TypeAluminum Factory Sealed Ground Fault Interrupter
Nema Rating3
ARRA CompliantContact Manufacturer
Description - InvoiceCLI FAC SEAL 3/4"DEW/GFICV(CS)
Harmonization Code8536308000
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D251
Gross Weight with Packaging5
SeriesFXS-GFI Series
Carton - SCC-14 Next Lower Level Sub Pack00783936198385
Certifications
- EU RoHS Indicator
- Contact Manufacturer
