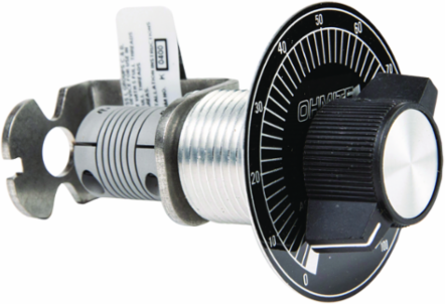

Killark GO113 N34 G Series Aluminum Potentiometer Operator 6.75 Inch x 2.5 Inch x 1.75 Inch
Killark GO113 N34 G Series Aluminum Potentiometer Operator 6.75 Inch x 2.5 Inch x 1.75 Inch
- MPN: GO113 N34
- UPC: 783936220130
- PPN: HBL-GO113 N34
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$628.40/ EA
Description
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Specifications
- Size
- 6.75 in x 2.5 in x 1.75 in
- ARRA Compliant
- Contact Manufacturer
- Dimensions
- 6.75 in x 2.5 in x 1.75 in
- Height
- 1.75 in
- Width
- 2.5 in
- Actuator
- Potentiometer Operator
- Frequency Rating
- 50/60 Hz
- Type
- Specialty
- Description - Invoice
- SINGLE TURN LONG POTENTIOMETER
- Harmonization Code
- 8533900399
- Lead Time
- 10 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 0.58
- Series
- GO Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936220130
Special FeaturesKillark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Country of OriginUnited States
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length6.75 in
ActionRotary
ApplicationG Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
Nema Rating3, 4, 4X
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE150827
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
