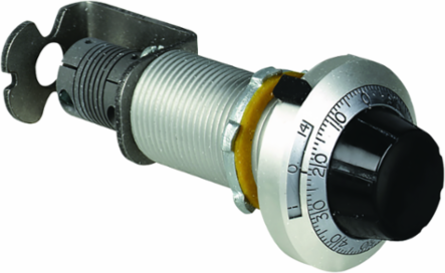

Killark GO114 N34 G Series Aluminum 6.75 Inch Long Fifteen-Turn Potentiometer Operator
- MPN: GO114 N34
- UPC: 783936220154
- PPN: HBL-GO114 N34
- UNSPSC: 39122216
CAD
$1132.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Length | 6.75 in |
| Actuator | Potentiometer Operator |
| Size | 6.75 in x 2.25 in x 2 in |
| Type | Specialty |
| Nema Rating | 3, 4, 4X |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 0.57 |
| Series | GO Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
| Dimensions | 6.75 in x 2.25 in x 2 in |
|---|---|
| Height | 2 in |
| Action | Rotary |
| Application | G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures. |
| Special Features | Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified |
| Width | 2.25 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | POTENTIOMETER, MULTI TURN |
| Harmonization Code | 8533908000 |
| Lead Time | 10 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D250 |
| CSA File Number | LR11714 |
| UL File Number | E150827 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936220154 |
| NAICS Code | 3359326103 |
