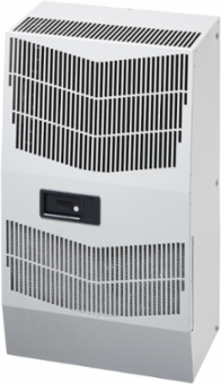

Nvent Hoffman G280616G050 SpectraCool Indoor/Outdoor G28, 6000BTU 115V, Lt Gray, Steel
Nvent Hoffman G280616G050 SpectraCool Indoor/Outdoor G28, 6000BTU 115V, Lt Gray, Steel
- MPN: G280616G050
- UPC: 783510209230
- PPN: HOF-G280616G050
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
SpectraCool Air Conditioners deliver reliable enclosure cooling in full spectrum of environments. This SpectraCool Indoor/Outdoor G28, G280616G050 item is rated 6000BTU 115V with material of Steel color Lt Gray.
Features
- Attractive industrial design with minimal use of visible fasteners
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Energy-efficient rotary compressor on most models
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
- R407C, R513A or R134a refrigerants
- 115, 230 and 400/460 VAC 3-phase power input on most models
- Reliable mechanical thermostat on enclosure side of the unit
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
- Dust-resistant condenser coil allows the unit to be run filterless in most indoor applications
- Dual condenser-side air movers for performance redundancy on G52 and G57 models
- Galvanized or stainless steel cover for rugged factory and outdoor environments
- Exterior and partially recessed mounting options
Specifications
Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 1,874
- Corrosion Resistant
- No
- Number of Phases
- 1
- Finish
- Powder Coated
- Height (H)
- 726
- Depth (D)
- 259
- Mounting
- Side wall
- Max Current
- 11.4
- Remote Access Control
- No
- Product Family
- SpectraCool
- NEMA Rating
- 4 Watertight
- Sub Brand
- SpectraCool
- BTU Rating
- 4,655
- Frequency Rating
- 50/60 Hz
- Color
- Lt Gray
Nominal Capacity Btu/h6,400
RefrigerantR407C
Nominal Voltage115
MaterialMild Steel
Thickness (T)1
Width (W)432
Outdoor InstallationYes
Operating Temperature10
Ambient Temperature10
Protection RatingNEMA Type 4
Color CodeRAL 7035
Weight92
Voltage Rating115 V
Amperage Rating9.9/11.4 Amp
Phase1 Ph
