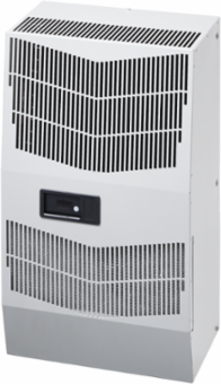

nVent Hoffman G280646G060 SpectraCool Indoor/Outdoor with RAC G28, 6000BTU 460V, Lt Gray, Steel
- MPN: G280646G060
- UPC: 783510209759
- PPN: HOF-G280646G060
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
SpectraCool Air Conditioners deliver reliable enclosure cooling in full spectrum of environments. This SpectraCool Indoor/Outdoor with RAC G28, G280646G060 item is rated 6000BTU 460V with material of Steel color Lt Gray.
Features
- Attractive industrial design with minimal use of visible fasteners
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Energy-efficient rotary compressor on most models
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
- R407C, R513A or R134a refrigerants
- 115, 230 and 400/460 VAC 3-phase power input on most models
- Reliable mechanical thermostat on enclosure side of the unit
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
- Dust-resistant condenser coil allows the unit to be run filterless in most indoor applications
- Dual condenser-side air movers for performance redundancy on G52 and G57 models
- Galvanized or stainless steel cover for rugged factory and outdoor environments
- Exterior and partially recessed mounting options
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 1,757
- Corrosion Resistant
- No
- Number of Phases
- 3
- Finish
- Powder Coated
- Height (H)
- 726
- Depth (D)
- 259
- Mounting
- Side wall
- Max Current
- 1.9
- Remote Access Control
- Yes
- Product Family
- SpectraCool
- NEMA Rating
- 4 Watertight
- Sub Brand
- SpectraCool
Nominal Capacity Btu/h6,000
RefrigerantR513A
Nominal Voltage460
MaterialMild Steel
Thickness (T)1
Width (W)432
Outdoor InstallationYes
Operating Temperature10
Ambient Temperature10
Protection RatingNEMA Type 4
Color CodeRAL 7035
Weight100
ColorLt Gray
