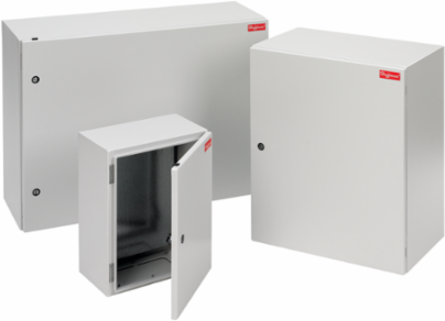

Nvent Hoffman G600500300G Fusion G7 Type 4 Enclosure, 600x500x300mm, Steel, IP66, Light Gray
Nvent Hoffman G600500300G Fusion G7 Type 4 Enclosure, 600x500x300mm, Steel, IP66, Light Gray
- MPN: G600500300G
- UPC: 783510189914
- PPN: HOF-G600500300G
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1073.69/ EA
Description
Fusion G7 enclosures offer metric dimensions, aesthetic styling and a gland plate for customer versatility. This Fusion G7 Type 4 and 12, G600500300G item measures 600x500X300mm with a material of Steel colored Lt Gray.
Features
- Seamless foam-in-place gasket
- Reversible door with sealed hinges and hinge brackets
- Gland plate(s) for enclosure bottom
- Bonding provision on door; grounding studs (2) on body
- Full-height galvanized steel back panel included
- External formed 90-degree body flange channels away liquids
- Three-point latching on enclosures 1000-mm high and taller
- Door alignment device on doors with 3-point latching and 800 mm or wider
- Pre-cut gland plate opening(s) in enclosure bottom
- Quarter-turn latch(es) with 3-mm double-bit insert
- Corner-formed door
- Simple, easy-to-remove and install hinge pins with captivation clip
- High-torque threadless studs and fasteners on door
- Wide assortment of user-friendly internal accessories to increase internal mounting area capability and design flexibility
- Hardware kit includes grounding and sealing hardware
- Hinged on right side
- Installation instruction provided
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 500
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Door Thickness
- 1.52
- IP Rating
- IP66
- Sub Brand
- Fusion G7
- Size
- 600x500X300mm
Height (H)600
Depth (D)300
Product FamilyFusion G7
ColorLight Gray
Body Thickness1.52
Latch TypeQuarter-Turn
Weight46
MaterialSteel
NEMA Rating12 Indoor, dust-resistant
