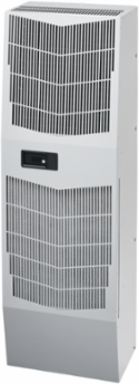

nVent Hoffman G520816G050 SpectraCool Indoor/Outdoor G52, 8000BTU 115V, Lt Gray, Steel
- MPN: G520816G050
- UPC: 783510192822
- PPN: HOF-G520816G050
- UNSPSC: 40101701
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SpectraCool Air Conditioners deliver reliable enclosure cooling in full spectrum of environments. This SpectraCool Indoor/Outdoor G52, G520816G050 item is rated 8000BTU 115V with material of Steel color Lt Gray.
Features
- Attractive industrial design with minimal use of visible fasteners
- Advanced Corrosion Protection Level 1 (ACP L1) Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Energy-efficient rotary compressor on most models
- Advanced Corrosion Protection Level 2 (ACP L2) Protection Includes: Everything that was coated in ACP L1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
- Reliable mechanical thermostat on enclosure side of the unit
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
- Dust-resistant condenser coil allows the unit to be run filterless in most indoor applications
- Dual condenser-side air movers for performance redundancy on G52 and G57 models
- Galvanized or stainless steel cover for rugged factory and outdoor environments
- Exterior and partially recessed mounting options
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Nominal Capacity Btu/h | 8,000 |
| Number of Phases | 1 |
| Material | Mild Steel |
| Remote Access Control | No |
| Protection Rating | NEMA Type 4 |
| Height (H) | 1,338 |
| Depth (D) | 296 |
| Thickness (T) | 1 |
| Product Family | SpectraCool |
| NEMA Rating | 4 Watertight |
| Sub Brand | SpectraCool |
| BTU Rating | 8,000 |
| Power | 1111/1332 W |
| Phase | 1 Ph |
| Nominal Capacity Watts | 2,300 |
|---|---|
| Nominal Voltage | 115 |
| Refrigerant | R513A |
| Operating Temperature | 10 |
| Corrosion Resistant | No |
| Outdoor Installation | No |
| Width (W) | 435 |
| Finish | Powder Coated |
| Mounting | Side wall |
| Color Code | RAL 7035 |
| Weight | 135 |
| Voltage Rating | 115 V |
| Amperage Rating | 9.9/11.4 A |
| Frequency Rating | 50/60 Hz |
| Color | Lt Gray |
