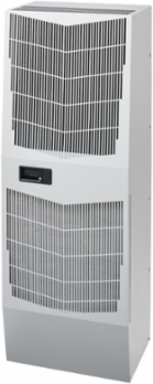

Nvent Hoffman G572026G101 SpectraCool Outdoor Partial Recess Mount G57, 20000BTU 230V, Lt Gray, Steel
Nvent Hoffman G572026G101 SpectraCool Outdoor Partial Recess Mount G57, 20000BTU 230V, Lt Gray, Steel
- MPN: G572026G101
- UPC: 783510194512
- PPN: HOF-G572026G101
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
SpectraCool Air Conditioners deliver reliable enclosure cooling in full spectrum of environments. This SpectraCool Outdoor Partial Recess Mount G57, G572026G101 item is rated 20000BTU 230V with material of Steel color Lt Gray.
Features
- Attractive industrial design with minimal use of visible fasteners
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Energy-efficient rotary compressor on most models
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
- R407C, R513A or R134a refrigerants
- 115, 230 and 400/460 VAC 3-phase power input on most models
- Reliable mechanical thermostat on enclosure side of the unit
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
- Dust-resistant condenser coil allows the unit to be run filterless in most indoor applications
- Dual condenser-side air movers for performance redundancy on G52 and G57 models
- Galvanized or stainless steel cover for rugged factory and outdoor environments
- Exterior and partially recessed mounting options
Specifications
Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 5,861
- Corrosion Resistant
- No
- Number of Phases
- 1
- Finish
- Powder Coated
- Height (H)
- 1,465
- Depth (D)
- 388
- Mounting
- Side wall
- Max Current
- 22.2
- Remote Access Control
- No
- Product Family
- SpectraCool
- NEMA Rating
- 4 Watertight
- Sub Brand
- SpectraCool
- BTU Rating
- 20,000
- Phase
- 1 Ph
Nominal Capacity Btu/h20,000
RefrigerantR407C
Nominal Voltage230
MaterialMild Steel
Thickness (T)1
Width (W)530
Outdoor InstallationYes
Operating Temperature-40
Ambient Temperature-40
Protection RatingNEMA Type 4
Color CodeRAL 7035
Weight284
Voltage Rating230 V
Frequency Rating50/60 Hz
ColorLt Gray
