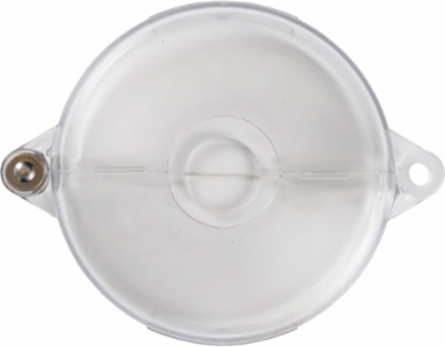

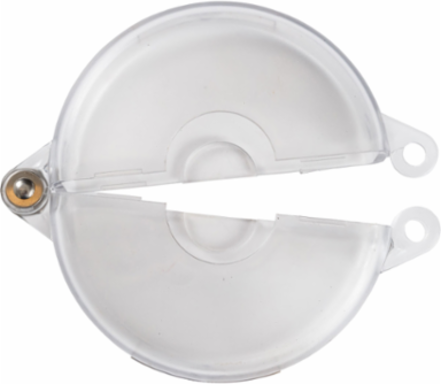

Brady 145582 Gate Valve Lockout Device, Fits Valve Handles Diameter 2.5" to 5"
- MPN: 145582
- UPC: 754473543990
- PPN: BRD-145582
- UNSPSC: 39121909
CAD
$29.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Gate valve lockout devices deny access and cover the valve handle. This device's unique knockout center fits OS&Y or "rising stem" valves.
Features
- Device is made of extremely rugged injection-molded polypropylene for superior impact and chemical resistance
- Supplied with English, Spanish and French danger labels

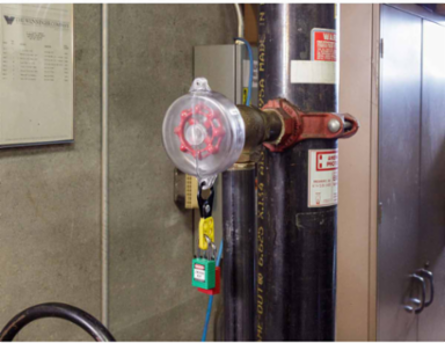

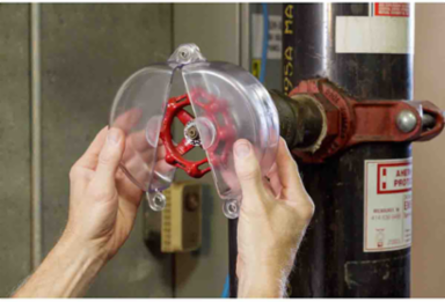

- Cover the valve handle with the gate valve lockout device and apply a personal padlock and lockout tag to ensure employee safety
- Accepts padlock shackles up to 3/8 in. in diameter
- Transparent gate valve covers allow visual inspection of the valve position and condition without having to remove the lockout device
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Color | Clear |
| Enables Industry Compliance | OSHA 1910.147 |
| Labels Supplied | Yes |
| Maximum Number of Padlocks | 1 |
| Risk Type | Mechanical Risk |
| Adhesive (Y/N) | No |
| Lockout Material | Styrene Acrylonitrile |
| Depth (mm/cm/m) | 50.60 mm |
| Diameter (mm/cm/m) | 132.08 mm |
| Dimensions (Metric) | 184.80 mm W x 141.70 mm H x 132.08 mm Dia x 50.60 mm D |
| Hole Inside Diameter (mm/cm/m) | 44.50 mm |
| Lockout Height (mm/cm/m) | 48.3 mm |
| Lockout Width (mm/cm/m) | 185.42 mm |
| Maximum Service Temperature °F | 302 °F |
| Maximum Shackle Diameter (mm/cm/m) | 9.53 mm |
| Minimum Service Temperature °F | -40 °F |
| Minimum Shackle Clearance - (mm/cm/m) | 19.05 mm |
| Rising Stem Knockout Hole Diameter (mm/cm/m) | 31.75 mm |
| Service Temperature Range °F | -40 °F to 302 °F |
| Size - W x H x D (mm) | 184.80 x 141.70 x 50.60 |
| Valve Wheel Diameter (mm/cm/m) | 64 - 127 |
| Branded | Yes |
|---|---|
| Country | Global |
| Gate Valve Lockout Type | Hinged |
| Language | English; French; Spanish |
| Primary Noun, Basic Function | Lockout Device |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Brady Material Number | LOTO-78 |
| Material | Polycarbonate |
| Diameter (in/ft/yd) | 5.6 in |
| Dimensions | 5.6 in Dia |
| Height (mm/cm/m) | 141.70 mm |
| Lockout Height (in/ft/yd) | 1.9 in |
| Lockout Width (in/ft/yd) | 7.3 in |
| Maximum Service Temperature °C | 150 °C |
| Maximum Shackle Diameter (in/ft/yd) | 0.375 in |
| Minimum Service Temperature °C | -40 °C |
| Minimum Shackle Clearance (in/ft/yd) | 0.75 in |
| Rising Stem Knockout Hole Diameter (in/ft/yd) | 1.25 in |
| Service Temperature Range °C | -40 °C to 150 °C |
| Sign Size-General | 5.6 in Dia |
| Size - Width (mm) | 184.80 mm |
| Valve Wheel Diameter Range (in/ft/yd) | 2.5 to 5 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliant | No |
| Contains CA PROP 65 Substance | No |
|---|---|
| EU RoHS Compliance | Not Applicable |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
