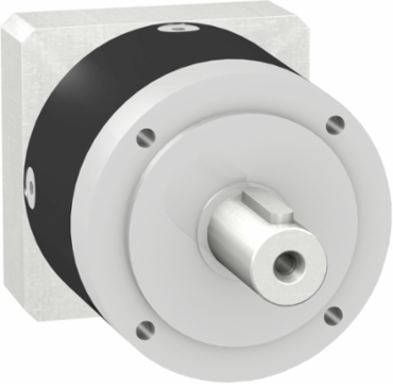

Schneider Electric GBX1600081403F Planetary Gearbox, 160 mm, Reduction 8:1, 450 N.m, 6 arc.min
- MPN: GBX1600081403F
- PPN: SCH-GBX1600081403F
CAD
$4109.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This planetary gearbox from Schneider Electric is engineered for precise motion control applications, offering a reliable reduction ratio of 8:1. With a compact design that measures 160 mm, it generates an impressive torque output of 450 N.m, making it ideal for a range of automation and control tasks. Featuring a high level of accuracy with only 6 arc minutes of backlash, this gearbox ensures optimal performance in various servo motor configurations, thus enhancing the efficiency and precision of your automated systems.
Documentation & Downloads
Specifications
Additional
- Continuous Output Torque
- 450 N.m at 100 rpm, 30 °C
- Maximum Axial Force
- 6000 N (30,000 h, 100 rpm, 30 °C), 8000 N (10,000 h, 100 rpm, 30 °C)
- Reduction Ratio
- 8:1
- Maximum Torsional Backlash
- 6 arc.min
- Operating Ambient Temperature
- -25 to 90 °C (-13 to 194 °F)
- Net Weight
- 18 kg (39.68 lb)
- Mounting Position
- Any position
- Mounting Dimensions a1
- 64.5 mm (2.53 in)
- Shaft Diameter 1
- 160 mm (6.29 in)
- Shaft Diameter 3
- 40 h7 (1.57 h7 in)
- Mounting Hole Distance 5
- 145 mm (5.70 in)
- Mounting Hole 7
- 165 mm (6.49 in)
- Shaft Material
- C 45
- Product Compatibility
- BSH 140 mm 3, BMH 140 mm 3, SH3, MH3, ILM
- Environmental Disclosure
- ENVPEP111245EN
- Mercury Free
- Yes
- RoHS Exemption Information
- Yes
- China RoHS Regulation
- Out of China RoHS scope, substance declaration provided
- Warranty
- 18 months
- Gear Box Type
- Straight teeth
Maximum Output Torque720 N.m at 100 rpm, 30 °C
Maximum Radial Force4200 N (30,000 h, 100 rpm, 30 °C), 6000 N (10,000 h, 100 rpm, 30 °C)
Torsional Rigidity38 N.m/arcmin
Efficiency96 %
Gearbox External Diameter160 mm
Shaft Moment Of Inertia4.63 g.cm²
Mounting Dimensions a255.5 mm (10.05 in)
Mounting Dimensions c140 x 140 mm
Mounting Hole 2130 h7 (5.12 h7 in)
Mounting Hole 4 (oblong)M12 x 20 mm (0.79 in)
Mounting Hole 6M10
Housing MaterialBlack anodized aluminium
Housing ColourBlack
Range CompatibilityLexium 62 ILM, Lexium 15, Lexium 52, Lexium 32, Lexium 62
Eu RoHS DirectivePro-active compliance (Product out of EU RoHS legal scope)
PVC FreeYes
Reach RegulationContains Substances of Very High Concern above threshold
Sustainable Offer StatusGreen Premium product
Device Short NameGBX
