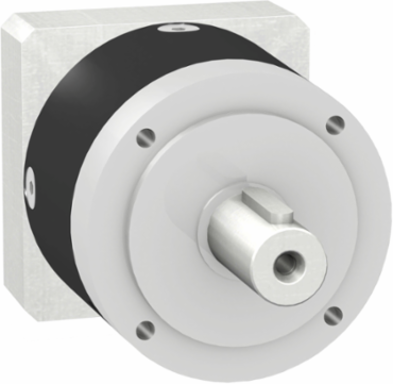

Planetary Gearbox 160 mm, 25:1 Reduction, 700 N.m Torque, < 10 arcmin Backlash
Schneider Electric

Schneider Electric GBX1600251002F Planetary Gearbox 160 mm, 25:1 Reduction, 700 N.m Torque, < 10 arcmin Backlash

  • MPN: GBX1600251002F
  • PPN: SCH-GBX1600251002F
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This planetary gearbox from Schneider Electric is engineered to deliver high performance in automation and motion control applications. With a robust 25:1 reduction ratio and a substantial torque capacity of 700 N.m, it ensures smooth and efficient operation, making it ideal for demanding tasks. The gearbox features a minimal backlash of less than 10 arcminutes, which enhances precision in the most intricate servo motor systems. Whether you're integrating it into a complex automation setup or a straightforward motion control project, this gearbox stands out for its reliability and effectiveness in optimizing performance.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Germany, France

Physical Attributes

Housing Color
black

Complementary Attributes

Minimum Operational Altitude
-25.0 m, -25.0 m
Maximum Operational Altitude
90.0 m
Maximum Permitted Torque
1400.0 N.m
Maximum Revolution Speed
6500.0 rpm
Maximum Axial Force Fa6000 N 100 rpm, during 30000 hour at 30°C8000 N 100 rpm, during 10000 hour at 30°C
Maximum Output Torque1120 N.m 100 rpm 30 °C
Maximum Radial Force Fr4200 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C6000 N 100 rpm, force applied at mid-distance from output shaft during 10000 hour at 30 °C
Maximum Torsional Backlash10 arc.min

Important Information Attributes

Minimum Operational Altitude
-25.0 m, -25.0 m
Carbon Footprint Of The Distribution Phase [A4]
2.9675287356, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0582179239, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
3 734 kg CO2 eq., 3733.9111111111
Local Publishable Date
2026-01-12
Stocking Flag
Y
Serviceability
No
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI111245EN
Without Single Use Plastic
No
Product Kit Identifier
N
Continuous Stall Torque
700.0 N.m
Efficiency
95 %
Gearbox External Diameter
160 mm
Maximum Operational Altitude
90.0 m
Maximum Revolution Speed
6500.0 rpm
Noise Level
70 dB 1 m, no-load
Peak Stall Torque
1120.0 N.m
Product Or Component Type
planetary gearbox
Returnability
No
Shaft Material
C 45
Software Version
EIME v5.8.1
Sustainable Packaging
No
Total Lifecycle Carbon Footprint
3 832 kg CO2 eq.
Pep Code
ENVPEP111245EN
Pep Verification Date
2020-07-01
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
The gearbox allows optimizing the load inertia of the machine process which is driven by the servo motor. The gearbox is converting the torque supplied by the motor to control the movement of the moving load of the machine process during 10 years and a 50% use rate at 108 W.
Functional-unit Unit
unit
Energy Consumption On Product Lifetime In Kwh
7621.2
Energy Model - Installation [A5]
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Nbr. Of Units In Pkg.
1
Take-back
No
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
42383.5
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
9483
Reduction Ratio Per Size8:1, 12:1, 15:1, 16:1, 20:1, 25:1, 32:1, 40:1
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.0552119253
Carbon Footprint Of The Manufacturing Phase [A1 To A3]93 kg CO2 eq., 92.7270114943
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Eoli Availability DisplayYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Compatibility CodeGBX
Device Short NameGBX
Gear Box Typestraight teeth
Housing Materialblack anodized aluminium
Maximum Permitted Torque1400.0 N.m
Mounting Positionany position
Nominal Speed1450 rpm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Reduction Ratio20:1
Service Life In Hours30000 h 100 rpm 30 °C
Shaft Moment Of Inertia10.087 kg.cm²
Static Torque1.3 N.m
Torsional Rigidity41 N.m/arcmin
Housing Colorblack
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Length Total153.5 mm
Package Weight(Lbs)23.0 kg
Warranty (In Months)18
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]9483
Customs Code8483405010

Environment Attributes Main

Ambient Air Temperature For Operation
-25-90 °C, -25-90 °C
Take Back
No
Carbon Footprint
3831.7190811901
Environmental Disclosure
ENVPEP111245EN
Packaging Made With Recycled Cardboard
Yes
Pep Code
ENVPEP111245EN
Pcr Version
PCR-ed3-EN-2015 04 02
Product CompatibilityBSH 100 mm, 2, BMH 100 mm, 2, BMI 100 mm, 2, SH3, MH3, ILM
Recycled Metal Content At Cr Level0 %
Circularity ProfileENVEOLI111245EN
Ip Degree Of Protectionshaft output IP54
Packaging Without Single Use PlasticNo
Pep Verification Date2020-07-01
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
planetary gearbox

ETIM

ETIM 8
EC002584
ETIM 9EC002584

Output Attributes

Continuous Output Torque
700 N.m 100 rpm 30 °C
Maximum Output Torque1120 N.m 100 rpm 30 °C

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Input Attributes

Efficiency
95 %

Batteries & Runtime Attributes

Additional Information
lubricated for life
