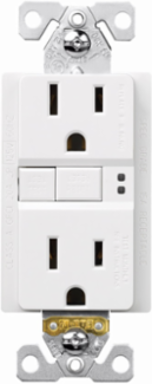

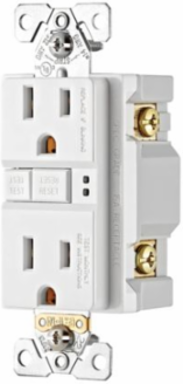

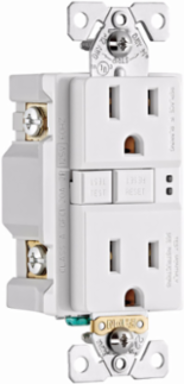

Eaton SGF15W Eaton GFCI receptacle,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,White,Brass,Receptacle,Polycarbonate,5-15R,Two-pole,Three-wire,Two-pole, three-wire, grounding
- MPN: SGF15W
- UPC: 032664742422
- PPN: COW-SGF15W
CAD
$24.39
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton GFCI receptacle,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,White,Brass,Receptacle,Polycarbonate,5-15R,Two-pole,Three-wire,Two-pole, three-wire, grounding
Documentation & Downloads
Specifications
Key Specifications
- Circuit interrupter type
- GFCI
- Color
- White
- Wiring method
- Back and side wire
- Allowable wire size
- #14 - 10 AWG
- Number Of Poles
- Two-pole
- Type
- Self-test
- Number of wires
- Three-wire
- Voltage rating
- 125V
Device typeReceptacle
Face/body materialPVC
Mounting methodFlush
Amperage Rating15 A
Contact materialBrass
NEMA configuration5-15R
Receptacle typeTwo-pole, three-wire, grounding
ApplicationResidential|Commercial
General
- UPC
- 032664742422
- Product Height
- 4.61 in
- Product Weight
- .37 lb
- Certifications
- cULus Listed
Product Length/Depth1.98 in
Product Width2.83 in
WarrantyRefer to warranty document.
