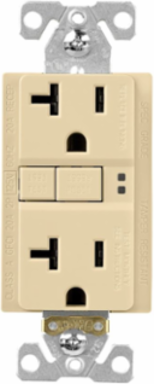

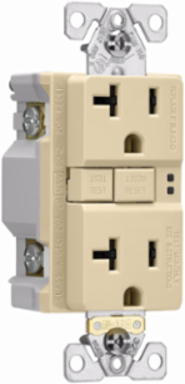

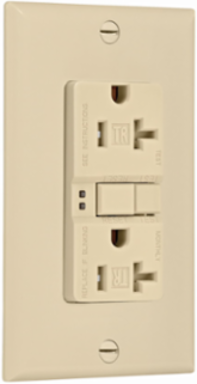

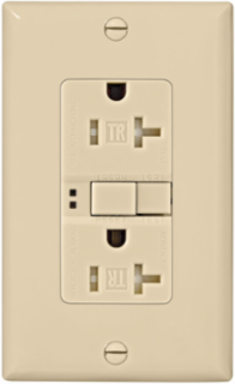

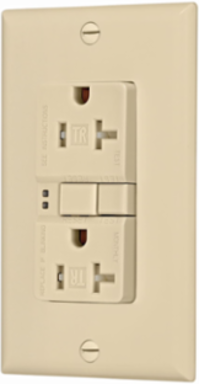

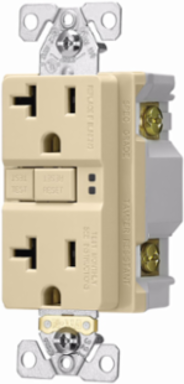

Eaton TRSGF20V Eaton TRSGF20V Eaton GFCI receptacle — Features: Tamper resistant, Certifications: cULus Listed
- MPN: TRSGF20V
- UPC: 032664739972
- PPN: COW-TRSGF20V
CAD
$24.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton GFCI receptacle,Tamper resistant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Ivory,Brass,Receptacle,Tamper resistant,Polycarbonate,5-20R,Two-pole, three-wire, grounding
Specifications
Key Specifications
| Length | 2.813 in |
|---|---|
| Width | 2 in |
| Nom Product Type | GFCI receptacle |
| Type | Self-test |
| Voltage Rating | 125V |
| Wiring Method | Back and side wire |
| NEMA Configuration | 5-20R |
| Environmental Conditions | Tamper resistant |
| Color | Ivory |
| Receptacle Type | Two-pole, three-wire, grounding |
| Height | 4.625 in |
|---|---|
| Weight | 0.405 lbs |
| Device Type | Receptacle |
| Amperage Rating | 20A |
| Application | Residential. Commercial |
| Allowable Wire Size | #14 - 10 AWG |
| Torque Rating | 16 lbf-inch |
| Mounting Method | Flush |
| Face/Body Material Pvc | Polycarbonate |
| Product Series | Gfci Receptacles |
