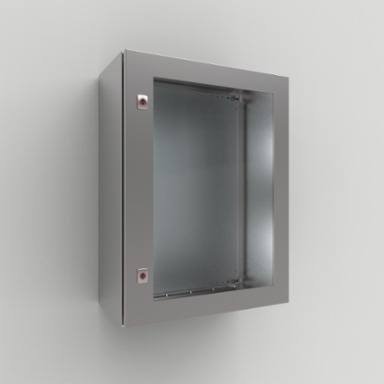

nVent Hoffman ADCS06060 Glazed Door 600x600 Stainless Steel 304 1.5mm Double Bit Lock
- MPN: ADCS06060
- UPC: 783510115753
- PPN: HOF-ADCS06060
CAD
$1313.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electrical components can be viewed while the door is closed. This Glazed Doors, ADCS, ADCS06060 item measures 600x600xmm has a material of Stainless Steel 304 color Unpainted, finish Brushed.
Features
- Description: To replace the standard door, provides a clear view of the components installed inside the enclosure. The lock(s) are interchangeable with all nVent HOFFMAN's standard lock(s)
- Material: 1.5 mm AISI 304 stainless steel, 2 mm for enclosures with a height or width of 600 mm or greater and 4 mm clear safety glass
- Finish: 400 pre-grained stainless steel
- Protection: Complies with IP55, TYPE 12, 13, IK 07.
- Pack quantity: 1 door
- The glazed door allows the electrical components to be seen while the enclosure's door is closed
- The user can monitor the status of the components without the need for opening the enclosure's door maintaining the ingress protection
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Window Size
- 459 x 443
- Enclosure Material
- Mild Steel
- Product Family
- Wall Mounted
- Finish
- Brushed
Height (H)600
Latch Quantity2
Works WithIEC
Protection RatingIP55
MaterialStainless Steel 304
Thickness (T)1.5
