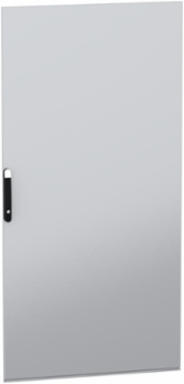

Schneider Electric NSYSFND2010 Plain door, PanelSeT SFN, Spacial SM, for electrical enclosure H2000 W1000mm

MPN: NSYSFND2010
PPN: SCH-NSYSFND2010

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1004.25/ EA

Qty:

Loading add to cart quantity...

Description

Plain door, PanelSeT SFN, Spacial SM, for electrical enclosure H2000 W1000mm

Specifications

Environment

Ik Degree Of Protection: IK10

Contractual warranty

Warranty: 18 months

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2301018_V1

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of Svhc: Yes

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationFree of Substances of Very High Concern above the threshold

Complementary

Number Of Locks: 1

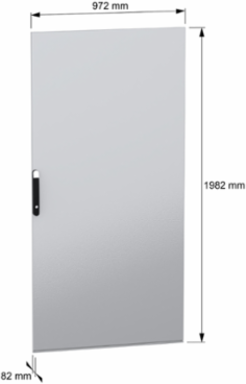

Height: nominal 1966 mm

Surface Finish: epoxy-polyester powder

Colour: grey RAL 7035)

Door Type: external plain

Door Opening Side: reversible 120 °)

Widthnominal 969 mm

Materialsheet steel

Maximum Load60 kg/m²

Lock Typelock 5 mm double bar

Net Weight17.5 kg

Specifications

Enclosure Nominal Dimensions: H: 2000 mm W: 1000 mm

Accessory / Separate Part Category: enclosure accessory

Product Or Component Type: door

Device Application: multi-purpose

Mounting Location: front

Range CompatibilityPanelSeT PanelSeT SFN

Quantity Per Setset of 1

Device Composition1 door || 1 lock with handle and 5 mm double bar insert || 1 locking bar system 4 points || 1 reinforcement frame || 4 hinges || 4 locking bar catches

RangePanelSeT

Downloads

Similar Products

nVent Hoffman MCS18066R5 Modular Single Door Enclosure 1800x600x600mm Mild Steel Light Gray, NEMA Type 12

MPN

MCS18066R5

Available to Order

Company Stock:

CAD$3425.69/EA

Qty:

Schneider Electric NSYSFND20102D Double Plain Door for Electrical Enclosure H2000 W1000mm, Grey

MPN

NSYSFND20102D

Available to Order

Company Stock:

CAD$1321.43/EA

Qty:

Schneider Electric NSYSFND20122D Double Plain Door for Enclosure H2000 W1200mm, Sheet Steel, IK10

MPN

NSYSFND20122D

Available to Order

Company Stock:

CAD$1518.09/EA

Qty:

Schneider Electric NSYSFND2210 Plain Door for PanelSeT SFN, 2200mm x 1000mm, IK10, Sheet Steel

MPN

NSYSFND2210

Available to Order

Company Stock:

CAD$918.06/EA

Qty:

Schneider Electric NSYSFND1810 Plain Door for Electrical Enclosure, H1800 W1000mm, 15.3 kg

MPN

NSYSFND1810

Available to Order

Company Stock:

CAD$969.94/EA

Qty:

Schneider Electric NSYSFND208 PanelSeT SFN Plain Door for Electrical Enclosure 2000mm x 800mm, 18.4kg

MPN

NSYSFND208

Available to Order

Company Stock:

CAD$925.58/EA

Qty:

Schneider Electric NSYSFND186 Plain Door for Electric Enclosure 1800mm x 600mm, IK10, Sheet Steel, 24.3kg

MPN

NSYSFND186

Available to Order

Company Stock:

CAD$784.15/EA

Qty:

Schneider Electric NSYSFD20102D PanelSeT SF Double Plain Doors 2000x1000 mm, 60 kg/m² Load Capacity

MPN

NSYSFD20102D

Available to Order

Company Stock:

CAD$1390.98/EA

Qty:

Schneider Electric NSYSFND18122D Double Plain Door for Enclosure H1800 W1200mm, IK10, 46.8kg

MPN

NSYSFND18122D

Available to Order

Company Stock:

CAD$1333.98/EA

Qty:

Schneider Electric NSYSFND226 Plain Door Enclosure 2200mm H x 600mm W, IK10, 42.8 kg, Grey RAL 7035

MPN

NSYSFND226

Available to Order

Company Stock:

CAD$673.69/EA

Qty:

Schneider Electric NSYSFND188 Plain Door for PanelSeT SFN Enclosure, H1800 W800mm, 31.5 kg, Grey RAL 7035

MPN

NSYSFND188

Available to Order

Company Stock:

CAD$897.14/EA

Qty:

Schneider Electric NSYSFND228 Plain Door for PanelSeT SFN Enclosure, H2200mm x W800mm, 54.5 kg

MPN

NSYSFND228

Available to Order

Company Stock:

CAD$1072.88/EA

Qty:

Accessories

Schneider Electric NSYSFNV20 Vertical Uprights Set for Electrical Enclosure, 2000 mm Height, Steel, Set of 4

MPN

NSYSFNV20

Available to Order

Company Stock:

CAD$674.43/EA

Qty:

Schneider Electric NSYSFNC106 PanelSeT Frame Kit for Electric Enclosure W1000 D600mm, Steel Material

MPN

NSYSFNC106

Available to Order

Company Stock:

CAD$1090.54/EA

Qty:

Schneider Electric NSYBPN2010 Rear Panel for PanelSeT SFN Enclosure H2000 x W1000 mm, 76.6 kg

MPN

NSYBPN2010

Available to Order

Company Stock:

CAD$555.14/EA

Qty:

Schneider Electric NSY2SPN206 Side Panels for Electrical Enclosure H2000 D600mm, Steel, Set of 2

MPN

NSY2SPN206

Available to Order

Company Stock:

CAD$660.69/EA

Qty:

Schneider Electric NSYEC106 Spacial SF Plain Cable Gland Plate 1000 x 600 mm Galvanised Steel 1.5 mm

MPN

NSYEC106

Available to Order

Company Stock:

CAD$133.43/EA

Qty:

Schneider Electric NSYEC1061 1 Entry Cable Gland Plate for Electrical Enclosure 1000 x 600 mm, Galvanised Steel

MPN

NSYEC1061

Available to Order

Company Stock:

CAD$217.45/EA

Qty:

Schneider Electric NSYEC1062 Spacial SF Cable Gland Plate, 1000 x 600 mm, Galvanised Steel, 1.5 mm Thick

MPN

NSYEC1062

Available to Order

Company Stock:

CAD$246.15/EA

Qty:

Schneider Electric NSYBCE10 Brush Gasket Set for 1000 mm Electrical Enclosure, 25 mm Depth, 2 Entries

MPN

NSYBCE10

Available to Order

Company Stock:

CAD$83.94/EA

Qty:

Schneider Electric NSYSPF10100 Electrical Enclosure Plinth 1000mm Width, 100mm Height, IK10, IP30

MPN

NSYSPF10100

Available to Order

Company Stock:

CAD$119.03/EA

Qty:

Schneider Electric NSYSPS6100 Spacial SF/SM Side Panels for Plinth, 100mm x 600mm, Set of 2

MPN

NSYSPS6100

Available to Order

Company Stock:

CAD$40.72/EA

Qty:

Schneider Electric NSYSPF10200 Front & Rear Plinth for Enclosure 1000mm W, 200mm H, IP30, Load 1300kg

MPN

NSYSPF10200

Available to Order

Company Stock:

CAD$187.94/EA

Qty:

Schneider Electric NSYSPS6200 Side Panels for Enclosure Plinth 600mm x 200mm, Set of 4, IK10, IP20

MPN

NSYSPS6200

Available to Order

Company Stock:

CAD$63.28/EA

Qty:

Loading carousel layout...

Schneider Electric NSYSFNV20 Vertical Uprights Set for Electrical Enclosure, 2000 mm Height, Steel, Set of 4

MPN

NSYSFNV20

Available to Order

Company Stock:

CAD$674.43/EA

Qty:

Schneider Electric NSYSFNC106 PanelSeT Frame Kit for Electric Enclosure W1000 D600mm, Steel Material

MPN

NSYSFNC106

Available to Order

Company Stock:

CAD$1090.54/EA

Qty:

Schneider Electric NSYBPN2010 Rear Panel for PanelSeT SFN Enclosure H2000 x W1000 mm, 76.6 kg

MPN

NSYBPN2010

Available to Order

Company Stock:

CAD$555.14/EA

Qty:

Schneider Electric NSY2SPN206 Side Panels for Electrical Enclosure H2000 D600mm, Steel, Set of 2

MPN

NSY2SPN206

Available to Order

Company Stock:

CAD$660.69/EA

Qty:

Schneider Electric NSYEC106 Spacial SF Plain Cable Gland Plate 1000 x 600 mm Galvanised Steel 1.5 mm

MPN

NSYEC106

Available to Order

Company Stock:

CAD$133.43/EA

Qty:

Schneider Electric NSYEC1061 1 Entry Cable Gland Plate for Electrical Enclosure 1000 x 600 mm, Galvanised Steel

MPN

NSYEC1061

Available to Order

Company Stock:

CAD$217.45/EA

Qty:

Schneider Electric NSYEC1062 Spacial SF Cable Gland Plate, 1000 x 600 mm, Galvanised Steel, 1.5 mm Thick

MPN

NSYEC1062

Available to Order

Company Stock:

CAD$246.15/EA

Qty:

Schneider Electric NSYBCE10 Brush Gasket Set for 1000 mm Electrical Enclosure, 25 mm Depth, 2 Entries

MPN

NSYBCE10

Available to Order

Company Stock:

CAD$83.94/EA

Qty:

Schneider Electric NSYSPF10100 Electrical Enclosure Plinth 1000mm Width, 100mm Height, IK10, IP30

MPN

NSYSPF10100

Available to Order

Company Stock:

CAD$119.03/EA

Qty:

Schneider Electric NSYSPS6100 Spacial SF/SM Side Panels for Plinth, 100mm x 600mm, Set of 2

MPN

NSYSPS6100

Available to Order

Company Stock:

CAD$40.72/EA

Qty:

Schneider Electric NSYSPF10200 Front & Rear Plinth for Enclosure 1000mm W, 200mm H, IP30, Load 1300kg

MPN

NSYSPF10200

Available to Order

Company Stock:

CAD$187.94/EA

Qty:

Schneider Electric NSYSPS6200 Side Panels for Enclosure Plinth 600mm x 200mm, Set of 4, IK10, IP20

MPN

NSYSPS6200

Available to Order

Company Stock:

CAD$63.28/EA

Qty:

Loading carousel layout...

Accessories

Schneider Electric LUB12 TeSys Ultra Non-Reversing Power Base 3P 12A 690V DIN-Rail 45mm

MPN

LUB12

Available to Order

Company Stock:

CAD$467.91/EA

Qty:

Schneider Electric LRD22 TeSys Deca Thermal Overload Relay 16-24A 1NO+1NC Class 10A

MPN

LRD22

Available to Order

Company Stock:

CAD$144.88/EA

Qty:

Schneider Electric CAD32M7 TeSys Deca Control Relay 3NO+2NC 10A 690V 220V AC 50/60Hz 45mm Width

MPN

CAD32M7

Available to Order

Company Stock:

CAD$113.03/EA

Qty:

Schneider Electric NSYCVF85M230PF ClimaSys Ventilator, 85 m³/h, 230V, IP54 Protection, 170 x 150 x 62 mm

MPN

NSYCVF85M230PF

Available to Order

Company Stock:

CAD$277.92/EA

Qty:

Schneider Electric NSYCAG125LPF Outlet Grille 125 x 125 mm with Filter, IP54 Protection

MPN

NSYCAG125LPF

Available to Order

Company Stock:

CAD$66.06/EA

Qty:

Schneider Electric NSYCCOTHO ClimaSys CC Simple Thermostat 250V 0-60°C NO Contact

MPN

NSYCCOTHO

Available to Order

Company Stock:

CAD$95.97/EA

Qty:

Schneider Electric NSYCCOHYT230VID ClimaSys CC Electronic Hygrotherm 200-240V AC -40 to 80C, 20-80% Humidity

MPN

NSYCCOHYT230VID

Available to Order

Company Stock:

CAD$309.08/EA

Qty:

Schneider Electric NSYCR100WU2 ClimaSys PTC 100W Resistance Heater, 110-250V, IP20, 200mm Height

MPN

NSYCR100WU2

Available to Order

Company Stock:

CAD$133.35/EA

Qty:

Schneider Electric C16F3TM160 Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 3 poles, TMD trip unit 160A

MPN

C16F3TM160

Available to Order

Company Stock:

CAD$4097.35/EA

Qty:

Square D LV434001 Enerlin'X IFE Ethernet Interface Module, 10/100 Mbps, 72mm x 105mm x 71mm

MPN

LV434001

Available to Order

Company Stock:

CAD$3697.34/EA

Qty:

Schneider Electric GV2L32 Motor Circuit Breaker 3P 32A Magnetic Rotary Handle

MPN

GV2L32

Available to Order

Company Stock:

CAD$475.29/EA

Qty:

Schneider Electric LC1D32M7 TeSys Deca Contactor 3P 32A 220V AC 50/60Hz, Screw Clamp Terminals

MPN

LC1D32M7

Available to Order

Company Stock:

CAD$337.14/EA

Qty:

Loading carousel layout...

Schneider Electric LUB12 TeSys Ultra Non-Reversing Power Base 3P 12A 690V DIN-Rail 45mm

MPN

LUB12

Available to Order

Company Stock:

CAD$467.91/EA

Qty:

Schneider Electric LRD22 TeSys Deca Thermal Overload Relay 16-24A 1NO+1NC Class 10A

MPN

LRD22

Available to Order

Company Stock:

CAD$144.88/EA

Qty:

Schneider Electric CAD32M7 TeSys Deca Control Relay 3NO+2NC 10A 690V 220V AC 50/60Hz 45mm Width

MPN

CAD32M7

Available to Order

Company Stock:

CAD$113.03/EA

Qty:

Schneider Electric NSYCVF85M230PF ClimaSys Ventilator, 85 m³/h, 230V, IP54 Protection, 170 x 150 x 62 mm

MPN

NSYCVF85M230PF

Available to Order

Company Stock:

CAD$277.92/EA

Qty:

Schneider Electric NSYCAG125LPF Outlet Grille 125 x 125 mm with Filter, IP54 Protection

MPN

NSYCAG125LPF

Available to Order

Company Stock:

CAD$66.06/EA

Qty:

Schneider Electric NSYCCOTHO ClimaSys CC Simple Thermostat 250V 0-60°C NO Contact

MPN

NSYCCOTHO

Available to Order

Company Stock:

CAD$95.97/EA

Qty:

Schneider Electric NSYCCOHYT230VID ClimaSys CC Electronic Hygrotherm 200-240V AC -40 to 80C, 20-80% Humidity

MPN

NSYCCOHYT230VID

Available to Order

Company Stock:

CAD$309.08/EA

Qty:

Schneider Electric NSYCR100WU2 ClimaSys PTC 100W Resistance Heater, 110-250V, IP20, 200mm Height

MPN

NSYCR100WU2

Available to Order

Company Stock:

CAD$133.35/EA

Qty:

Schneider Electric C16F3TM160 Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 3 poles, TMD trip unit 160A

MPN

C16F3TM160

Available to Order

Company Stock:

CAD$4097.35/EA

Qty:

Square D LV434001 Enerlin'X IFE Ethernet Interface Module, 10/100 Mbps, 72mm x 105mm x 71mm

MPN

LV434001

Available to Order

Company Stock:

CAD$3697.34/EA

Qty:

Schneider Electric GV2L32 Motor Circuit Breaker 3P 32A Magnetic Rotary Handle

MPN

GV2L32

Available to Order

Company Stock:

CAD$475.29/EA

Qty:

Schneider Electric LC1D32M7 TeSys Deca Contactor 3P 32A 220V AC 50/60Hz, Screw Clamp Terminals

MPN

LC1D32M7

Available to Order

Company Stock:

CAD$337.14/EA

Qty:

Loading carousel layout...

Schneider Electric NSYSFND2010 Plain door, PanelSeT SFN, Spacial SM, for electrical enclosure H2000 W1000mm

Description

Specifications

Environment

Contractual warranty

Offer Sustainability

Complementary

Specifications

Downloads

Similar Products

Accessories

Accessories

Need assistance finding the right item?

We can help! Connect with our Sales Team Today!

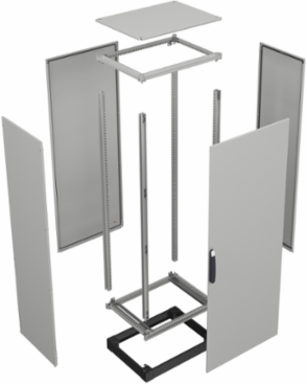

Schneider Electric NSYSFND2010 Plain door, PanelSeT SFN, Spacial SM, for electrical enclosure H2000 W1000mm

Description

Specifications

Environment

Contractual warranty

Offer Sustainability

Complementary

Specifications

Downloads

CAD

Instruction sheet

Downloads

Certificate

Catalog

Environmental Disclosure

Similar Products

Accessories

Accessories

Need assistance finding the right item?

We can help! Connect with our Sales Team Today!
