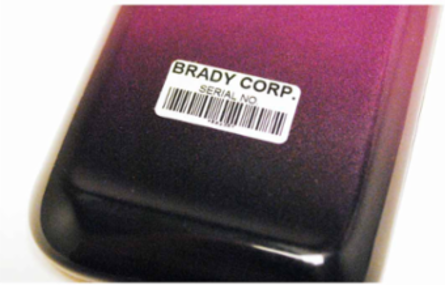

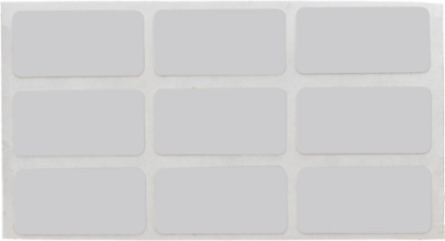

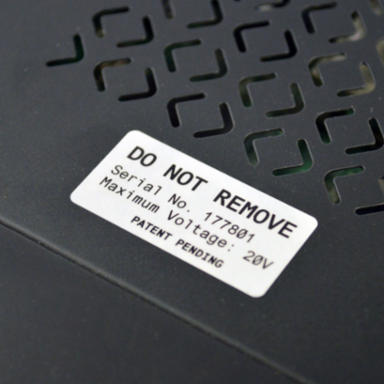

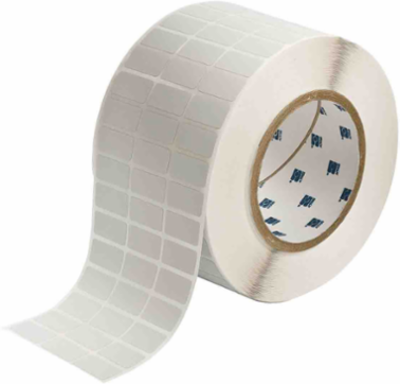

Brady THT-5-434-10 Gloss Metallized Polyester Labels, 0.5" H x 1" W
- MPN: THT-5-434-10
- UPC: 662820302803
- PPN: BRD-THT-5-434-10
- UNSPSC: 55121612
CAD
$548.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Metallized Polyester (B-434) labels are designed for applications that use barcodes, alphanumerics, graphic symbols and logos and require nameplate-like quality.
Features
- Glossy, light gray finish gives labels a rating and serial plate appearance
- Labels are designed to withstand numerous solvents and variable temperatures when applied to various surfaces
- UL approved;CSA accepted
- Service temperature of -40 to 194° F (-40 to 90° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Asset Tracking; Circuit Board Labeling; General Identification; Inventory and Inspection Labeling
- Brand Name
- Brady®
- Color
- Silver
- Diagram
- Icon 26 (hexagon)
- Finish
- Gloss
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
- Quantity per Roll
- 10000
- Recommended Ribbon
- IP-R6007; R6007
- Shape
- Rectangle
- Total Qty per Pack
- 10000 Label(s) / Roll
- Trade Name
- MetaLabel
- After Process
- Yes, this material will work with this application
- Label Properties
- Metallic Labels; Permanent Adhesive Labels
- Material Properties
- Metallic Appearance
- SAP B-Number
- B-434
- Dimensions
- 0.5 in H x 1 in W
- Dimensions 2
- 0.5 in H x 1 in W
- Height (mm/cm/m)
- 12.70 mm
- Label/Tape Size (in/ft/yd)
- 0.5 in H x 1 in W
- Maximum Service Temperature °F
- 194 °F
- Minimum Service Temperature °F
- -40 °F
- Printable Area Height (mm/cm/m)
- 12.7 mm
- Sign Size-General
- 0.5 in x 1 in
- Thickness (in/ft/yd)
- 0.004 in
- Vertical Repeat
- 0.6 in
- Web Width (mm/cm/m)
- 85.09 mm
- Width (mm/cm/m)
- 25.4 mm
Board ApplicationThrough Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
Enables Industry ComplianceASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; UL Recognized
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsGeneral Identification; Inspection Repair; Rating & Name Plates
Printer Compatibility (Print)BBP12; i7100; i5100
Quantity per Row3
Ribbon SeriesR6000HF
Suggested Ribbon SeriesR4800; R4900; R6000 Halogen Free; R6200
Total Quantity10000
Adhesive TypePermanent Acrylic
Brady Material NumberB-434
MaterialMetallized Polyester
Resistance PropertiesAbrasion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)25.40 mm W x 12.70 mm H
Height (in/ft/yd)0.5 in
Horizontal Repeat (mm)27.31 mm
Maximum Service Temperature °C90 °C
Minimum Service Temperature °C-40 °C
Printable Area Dimensions (Metric)12.7 mm H x 25.4 mm W
Printable Area Width (mm/cm/m)25.4 mm
Size - Width (mm)25.40 mm
Thickness (mm/cm/m)0.102 mm
Vertical Repeat (mm)15.24 mm
Width (in/ft/yd)1 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
