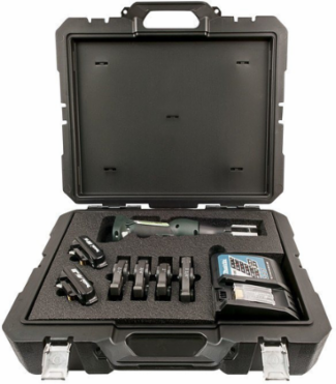

Greenlee INLP-KIT001 Gorilla Inline PressTool Kit for Copper & Steel Fittings, 1-1/2" Crimp Capacity, 4,275 lbs Force
- MPN: INLP-KIT001
- UPC: 783310410317
- PPN: GRN-INLP-KIT001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Gorilla Inline PressTool Kit for Copper & Steel Fittings, 1-1/2" Crimp Capacity, 4,275 lbs Force
Features
- Faster - Intelligence for accurate pressing
- Safer - No open flame. Safely install fittings without soldering or welding

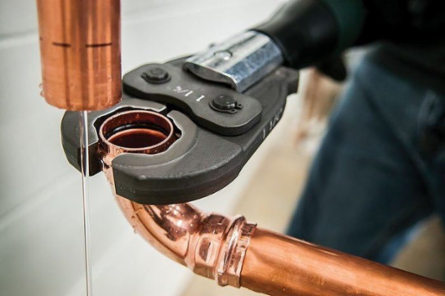

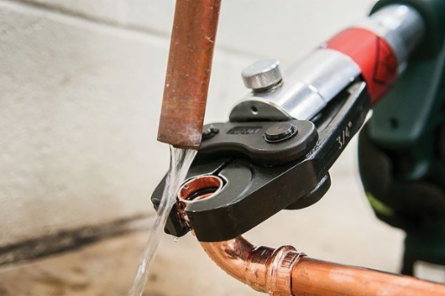

- Easier - Works on a wet system
- Autostop" Technology enables piston to stop once pressing operation meets optimal force to ensure proper completion of press fitting
- Precise Pressing Force using HPC pressure monitoring with LED light and audible signals
- Battery and Maintenance status shown via LED display
- Push button trigger controls all tool functions with "Quickstop" of the tool's ram when released
- Automatic piston return saves time when performing multiple presses
- Lightweight design for easy handling
- 350° Rotating Jaw allows for easy fitting into tight spaces
- LED work light illuminates for safety when working in dark areas
- Patented twist and release locking pin enables quick exchange of pressing jaws
- Innovative 2-component housing enables secure grip for easy one-handed operation
Documentation & Downloads
Specifications
Key Specifications
| Application | Tool Kit for pressing fittings used with PEX, Copper, and Steel pipes |
|---|---|
| Battery Charger | Makita 120V Battery Charger (DC18RC-X) |
| Crimp Cycle Time | Pressing cycle time 3-4 seconds |
| Crimping Force | Pressing Force 4,275 lbs (19kN) |
| Height | 13-3/8'' (339.7 mm) |
| Jaw | 1-1/4'' (31.8 MM) Jaw for Copper and Steel |
| Sub Brand | Gorilla |
| Weight With Jaws | Inline Tool with Battery and 1-1/4'' (31.8 MM) Jaw - 7.4LBS (3.4 KG) |
| Battery | Makita 18V 2.0AH |
|---|---|
| Battery Charge Time | 15 minutes |
| Crimping Capacity | Press PEX Fittings up to 1-1/2'' (38.1 mm) |
| Estimated Cycles per Charge | 150 |
| Includes | 1 Carrying case |
| Rotation | Head Rotation 350° |
| Weight | Case with Tool, 4 Jaws, 2 batteries, and 1 charger - 27.6 lbs (12.5 kg) |
| Width | 2-13/16'' (71.4 mm) |
