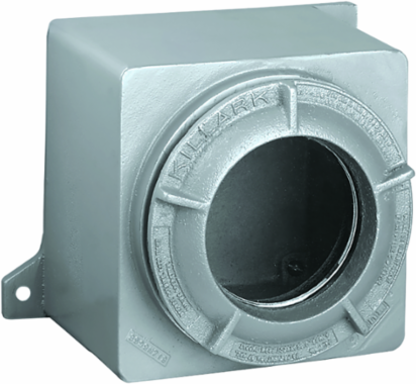

Killark GRM-375L GR Series 6 Inch x 6 Inch x 12-1/4 Inch Cast Aluminum Enclosure, Type 4, Class I, II, III
- MPN: GRM-375L
- UPC: 783936233468
- PPN: HBL-GRM-375L
- UNSPSC: 39121314
CAD
$1238.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
GR Series, 6 X 6 X 12.25, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Viewing Lens Screw Cover Enclosure
Features
- Compact rectangular enclosures with threaded lens covers, provides view of the interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction and tempered soda lime glass, cemented in place.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Cast mounting lugs are standard on all boxes.
- Internal ground screw supplied on all boxes.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and cover.
- Mounting pans are available.
- Conduit and device openings factory or field installed.
- Compact square or rectangular enclosures with threaded screw type covers provide easy access to interior. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Enclosure has lens cover. Cast mounting lugs are standard on al
Specifications
Key Specifications
- Size
- 10.25 in x 8.5 in x 7.5 in
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 10.25 in
- Engineering Drawing 1 Display Text
- GRM-375 Engineering Drawing
- Cover Type
- Threaded
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514 / E83696
- Series
- GR Enclosures Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Special FeaturesCompact square or rectangular enclosures with threaded screw type covers provide easy access to interior. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Enclosure has lens cover. Cast mounting lugs are standard on al
Country of OriginMexico
Dimensions10.25 in x 8.5 in x 7.5 in
Height7.5 in
Width8.5 in
ApplicationHazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica
TypeEnclosure & Lens Cover
Description - Invoice3-3/4" BOX W/LENSE COVER
Harmonization Code7616999999
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD25D252
Gross Weight with Packaging14.4
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936233468
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
