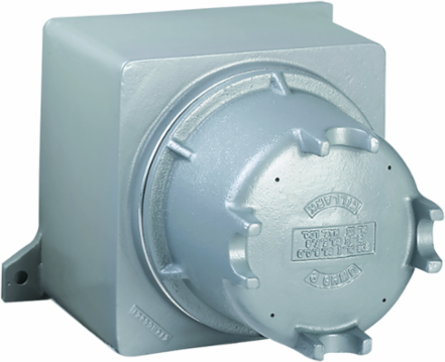

Killark 4GRHC GR Series Cast Aluminum Type 4 Enclosure, 9.5 x 10.5 x 16.31 Inch, Class I-III
- MPN: 4GRHC
- UPC: 783936228129
- PPN: HBL-4GRHC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
GR Series, 9.5 x 10.5 x 16.31", Class I, II, III, BCDEFG, Cast Aluminum, Type 4, 4" Dome Screw Cover Enclosure
Features
- Compact rectangular enclosures with threaded screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Available with a flat blank or dome covers.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Cast mounting lugs are standard on all boxes.
- Internal ground screw supplied on all boxes.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and cover.
- Mounting pans are available.
- Conduit and device openings factory or field installed.
- The GR series rectangular boxes with screw covers are for use in locations that are hazardous, corrosive, wet, hose down, dust, dirty, under both sever hot and cold ambient conditions. Cover options; blank flat, lens and domes. The GR series is UL / CSA certified for Class I Groups BCD, Class I Zone 1 & 2 IIB+H2, Class II Groups EFG, Class III, Type 4 & 4X. Also, ATEX, IEC Ex, Ex d IIB+H2 Ex tD A21 IP66 when ordered with suffix “CEN”. The GRs are made of cast copper-free aluminum (less than 4/10 of 1%, supplied standard with a Nitrile (BUNA-N) O-Ring, cast on mounting lugs. The boxes can be pre-drilled internally for factory or field installed mounting pans. Options include, control operators, NPT conduit openings & metric gland openings.
Specifications
Key Specifications
- Country of Origin
- United States
- Engineering Drawing 1 Display Text
- 4GRHC Engineering Drawing
- Nema Rating
- 3, 4, 4X
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- THREADED ENCL, W/ 4" DOME
- Harmonization Code
- 7616995190
- MSDS Flag
- No
- CSA File Number
- LR11716
- Series
- GR Enclosures Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Total Units
- 1 EA
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Cover TypeThreaded
TypeEnclosure & Dome Cover
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
Sub Class CodeD25D252
UL File NumberE10514 / E83696
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936228129
NAICS Code3359326315
