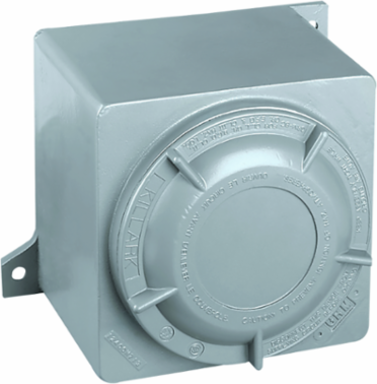

Killark GRM Enclosure 6 X 6 X 4.18 Inch, Class I-III, Copper-Free Aluminum, Type 4, Gray
Killark GRM Enclosure 6 X 6 X 4.18 Inch, Class I-III, Copper-Free Aluminum, Type 4, Gray
- MPN: GRM
- UPC: 783936230061
- PPN: HBL-GRM
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$594.38/ EA
Description
GR Series, 6 X 6 X 4.18, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Screw Cover Enclosure
Features
- Compact rectangular enclosures with threaded screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Available with a flat blank or dome covers.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Cast mounting lugs are standard on all boxes.
- Internal ground screw supplied on all boxes.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and cover.
- Mounting pans are available.
- Conduit and device openings factory or field installed.
- Compact square or rectangular enclosures with threaded screw type covers provide easy access to interior. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Enclosure has blank cover. Cast mounting lugs are standard on a
Specifications
Specifications
- Size
- 9.75 in x 8.5 in x 7.25 in
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 9.75 in
- Engineering Drawing 1 Display Text
- GRM Engineering Drawing
- Cover Type
- Threaded
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514 / E83696
- Series
- GR Enclosures Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936230061
Special FeaturesCompact square or rectangular enclosures with threaded screw type covers provide easy access to interior. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Enclosure has blank cover. Cast mounting lugs are standard on a
Country of OriginUnited States
Dimensions9.75 in x 8.5 in x 7.25 in
Height7.25 in
Width8.5 in
ApplicationHazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica
TypeEnclosure & Blank Cover
Description - Invoice5-9/32" BOX W/BLANK COVER
Harmonization Code7616999999
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD25D252
Gross Weight with Packaging12
MaterialCopper-free aluminum
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
