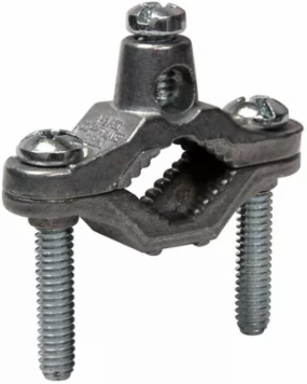

Hubbell GCZ0510 GROUND CLAMP 0.50IN TO 1.00IN ZINC
- MPN: GCZ0510
- UPC: 626463036747
- PPN: HBL-GCZ0510
- UNSPSC: 39131708
CAD
$1.76
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
GROUND CLAMP 0.50IN TO 1.00IN ZINC.
Features
- The Hubbell (TradeSelect) GCZ0510 is a versatile ground clamp designed for bonding grounding wires or conduits to water pipes, copper tubing, or ground rods. It serves as a critical connection point in the electrical grounding system, ensuring that any stray current is safely diverted into the earth, protecting both personnel and equipment in Canadian residential and commercial buildings.
- This clamp is manufactured from high-strength zinc. Zinc provides an excellent balance of durability and corrosion resistance for indoor or non-aggressive outdoor environments. It is a cost-effective alternative to bronze or copper clamps when used in standard residential plumbing or electrical grounding applications across Canada.
- The GCZ0510 is engineered with a flexible clamping range, capable of securing to pipes or rods with an outside diameter from 1/2-inch to 1-inch. This "one-size-fits-most" design makes it a staple in Canadian service vans, as it can adapt to various standard water pipe sizes (such as 1/2" or 3/4" copper) and standard 5/8" or 3/4" ground rods.
- The unit features a robust steel screw-clamp mechanism. The wire terminal is designed to accept bare copper grounding conductors (typically ranging from #10 AWG to #2 AWG). The pressure-plate design ensures a high-torque, gas-tight connection that won't loosen over time due to thermal expansion or building vibration.
Documentation & Downloads
Specifications
Additional
- Size Range
- 0.50 in to 1.00 in
- Compliance
- CSA, UL Listed
MaterialZinc
