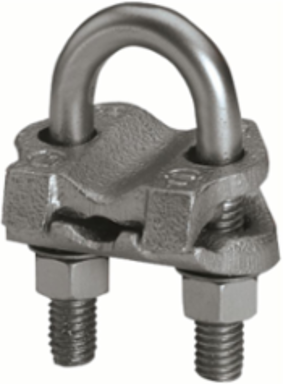

Burndy GAR1826W Ground Clamp, Copper Tin Plated, 4 AWG - 2/0 AWG, UL Listed, 240 Lb-in Torque
- MPN: GAR1826W
- UPC: 781810001486
- PPN: BUR-260134
- UNSPSC: 39121408
CAD
$217.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ground Clamp Copper Tin Plated bodies and electro tin plated hardware 4 AWG-2/0 AWG Installation Torque Recommended Run in-lb 240 LB in.
Features
- Parallel or 90° Copper Cable Connection
- One-wrench installation
- Rated for Direct Burial in earth or concrete
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Conductor - Copper Solid Size Range | 4-3/0 |
| Conductor - Copper Str Size Range | 5 AWG - 2/0 AWG |
| Conductor - Copper Tube Std Size Range | 2 |
| Conductor - Rod Size | 2 in-2.38 in |
| Dimension - B Length inch | 2.75 in |
| Dimension - L Length Overall mm | 40 mm |
| Dimension - Outside Diameter inch | 2.38 in |
| Dimension - Width mm | 94 mm |
| Industry Standard(s) | UL467 |
| Installation Torque Recommended Run in-lb | 240 Lb-in |
| Plating Type | Tin Plated bodies and electro tin plated hardware |
| Standards - Industry Standards Met | UL467 |
| U Bolt Type | 257 |
| Conductor Type | CU C Solid-Size;CU C Str-Size;CU Tube Std-Size;Rod-Size |
| Class Code | B41 |
| Harmonization Code | 8535908060 |
| Lead Time | 12 wk |
| UL Listed | Yes |
| Material - Hardware | DURIUM™ Silicon Bronze |
| BOX SIZE | 12.000x12.000x12.000 (in) |
| Carton - Number of Sub Packs | 6 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00781810001486 |
| Case - SCC-14 Next Lower Level Sub Pack | 30781810001487 |
| Package - Total Units | 6 EA |
| Package Weight | 0.000 lb. |
| Pallet Height | 40.500 in |
| Pallet Weight | 304.200 lb. |
| Standard Package Quantity | 6 |
| Conductor - Copper Solid Size | 4 AWG |
|---|---|
| Conductor - Copper Str Size | 2/0 AWG |
| Conductor - Copper Tube Std Size | 2 |
| Conductor - Pipe or Round Tube Size Range | 2 in |
| Conductor - Rod Size Range | 2-2 1/4 |
| Dimension - Height inch | 4.25 in |
| Dimension - Length Overall inch | 1.56 in |
| Dimension - Width inch | 3.69 in |
| Width | 3.750 in |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Plated | Y |
| Product Type | Mechanical |
| Standards - RoHS Compliance Status | CM |
| Standard | UL467 |
| Certification Agency | Proposition 65 |
| Freight Class Code | 16027000 |
| Image Actual Or Representative | A |
| Sub Class Code | B41BD1F |
| Material | Copper |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 7.200 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 6 |
| Package - GTIN - Package | 30781810001487 |
| Package Quantity | 6 EA |
| Pallet - GTIN - Package | 70781810001485 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| NAICS Code | 3359319102 |
Certifications
| CSA Approved | No |
|---|---|
| ETL | No |
| UL Recognized | No |
| cULus | No |
|---|---|
| UL Listed Direct Burial | Yes |
