Leviton

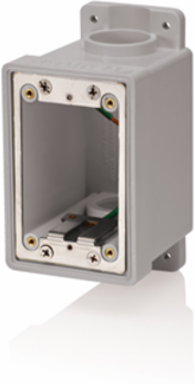

Leviton FDBX1-G Wetguard Watertight Single Gang FD Box 26.0 Cubic Inch Capacity, NEMA 4/4X/12 IP66

Wetguard Watertight Single Gang FD Box 26.0 Cubic Inch Capacity, NEMA 4/4X/12 IP66
  • MPN: FDBX1-G
  • UPC: 078477518397
  • PPN: LEV-FDBX1-G

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$96.23/ EA

Description

FD Box, Single-Gang, 26.0 Cubic Inch Capacity, 1" unthreaded conduit openings with reducers for 3/4" and 1/2" conduit , includes plugs for unused openings and stainless steel device mounting plate with ground wire, industrial grade - GRAY

Features

  • BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
  • THE BRAND YOU TRUST- 10 Year Warranty with a IP66 enclosure rating
  • DURABLE- Constructed using 304 stainless steel for resistance against heat, chemical corrosion and physical abrasion.
  • EASY INSTALLATION- Our boxes Feature up to 30% more volume than competitive boxes, making it easier to install multiple devices.
  • WIDE COMPATABILITY- Accept any Wetguard FS mount single outlets, inlets, receptacles and covers

Specifications

Standards and Certifications

cULus
Listed

Material Specifications

Box
Rigid PVC
Gasket (2-and3-gang)
Santoprene TPV
Mounting Plate
Stainless Steel
Threaded Inserts
Brass
Frame (2-and 3-gang)Valox PBT
Grounding WireGreen #12AWG Stranded Copper, 8" Long
Reducers/PlugsRigid PVC

Mechanical Specifications

Box Volume
26.0 cu in/426 cu cm

Specifications

Country of Origin
Please Contact Customer Service
RoHS CompliantFalse

Product Features

Brand
Wetguard
Device Type
FD Box
ColorGray

Environmental Specifications

Enclosure Rating
NEMA 4, 4X, 12 IEC IP66
Operating Temperature
-29°C to 60°C
EnvironmentWet
