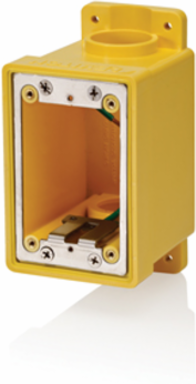

Leviton FDBX1-YL Single-Gang FD Box

MPN: FDBX1-YL
UPC: 078477518373
PPN: LEV-FDBX1-YL

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$101.04/ EA

Qty:

Loading add to cart quantity...

Description

FD Box, Single-Gang, 26.0 Cubic Inch Capacity, 1" unthreaded conduit openings with reducers for 3/4" and 1/2" conduit , includes plugs for unused openings and stainless steel device mounting plate with ground wire, industrial grade - YELLOW

Features

Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP66 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands. Standard color options include yellow and gray with black available upon special request.

Specifications

Standards and Certifications

cULus: Listed

Material Specifications

Box: Rigid PVC

Gasket (2-and3-gang): Santoprene TPV

Mounting Plate: Stainless Steel

Threaded Inserts: Brass

Frame (2-and 3-gang)Valox PBT

Grounding WireGreen #12AWG Stranded Copper, 8" Long

Reducers/PlugsRigid PVC

Mechanical Specifications

Box Volume: 26.0 cu in/426 cu cm

Specifications

Country of Origin: United States

RoHS CompliantFalse

Product Features

Brand: Wetguard

Device Type: FD Box

ColorYellow

Environmental Specifications

Enclosure Rating: NEMA 4, 4X, 12 IEC IP66

Operating Temperature: -29°C to 60°C

EnvironmentWet

Downloads
