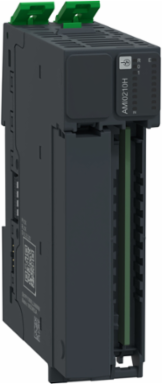

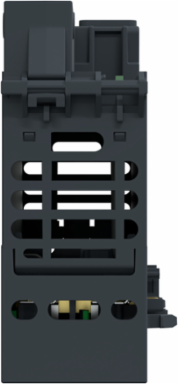

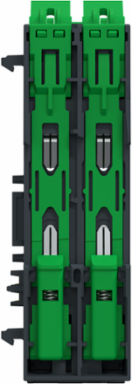

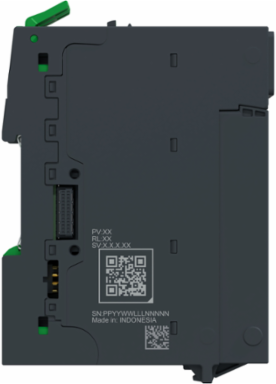

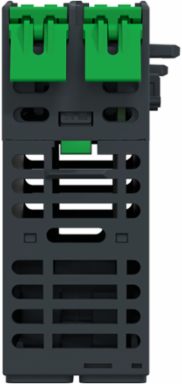

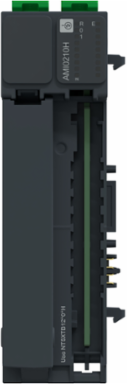

Schneider Electric NTSAMI0210HK Analog Input Module + Base, 2 Isolated In, Current, Voltage, 2/3/4 wires, Loop Power, Hardened, Modicon Edge I/O NTS
- MPN: NTSAMI0210HK
- PPN: SCH-NTSAMI0210HK
CAD
$865.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

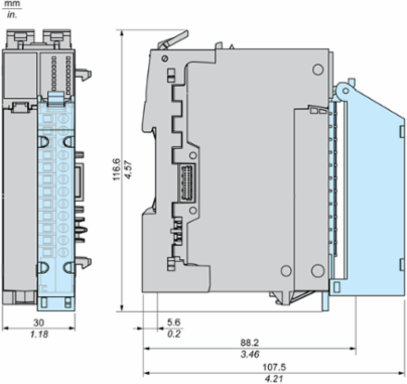

This analog input kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and an analog input module. It has 2 isolated voltage current inputs of type ±10V, 0to10V, ±5V, 0to5V, 1to5V, ±20mA, 0to20mA, 4to20mA, 2-3-4-wire connection, powered by a current loop. This all-in-one solution is a comprehensive platform for managing multiple analog signals, ensuring efficient data processing. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 116mm high, 30mm wide, 88mm deep and weighs 0.125kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Depth80 mm
Physical Attributes
- Housing Color
- grey
Complementary Attributes
- Maximum Cable Distance Between Devices
- shielded cable <200 m voltage inputsshielded cable <1000 m current input
Rated Operational Voltage Limits20.4...28.8 V DC
Important Information Attributes
- Environmental Characteristic
- Gas resistant CX & GX combined, Salt spray resistant, harsh environment, harsh environment
- Kit Composition
- NTSAMI0210H module, NTSXBA0200H base
- Marking
- CE, UKCA, cULus, RCM
- Mounting Support
- top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715
- Sensor Power Supply Protection
- over current protection per channel, short circuit protection on loop power supply per channel
- Non-linearity
- <= 0.01 % FS voltage/current, <= 0.01 % FS voltage/current, <= 0.01 % FS voltage/current, <= 0.01 % FS voltage/current
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.375580025860564, 0.4 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 9.616318247901853
- Local Data Status
- Publishable
- Pre Comm Date
- 2025-01-31
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2410004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2439
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Common Mode Rejection
- 90 dB
- Hart Tolerance
- yes
- Isolation Between Channels
- 530 V AC
- Isolation Between Field Power And Bus
- 1500 V AC
- Mandatory Accessory
- NTSXTB12_0_H terminal block
- Power Dissipation In W
- 1.9 W maximum at 24 V DC
- Product Or Component Type
- analog input module
- Range Of Product
- Modicon Edge I/O NTS
- Sampling Duration
- 0.499 ms
- Shock Resistance
- 15 g 11 ms with and without accessory)
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 30 kg CO2 eq.
- Typical Current Consumption
- 36 mA 24 V DC on the Bus current38.4 mA 24 V DC on the internal field current minimum246.1 mA 24 V DC on the internal field current maximum
- Housing Color
- grey
- Pep Code
- ENVPEP2410004EN
- Pep Verification Date
- 2024-10-08
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 100 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Isolation Between Channels And Field Pwrno for module sensor power supply, 1000 Vac for module loop power supply
Lsb Value0.31 mV, +/- 10 V, 0.31 mV, 0...10 V0.16 mV, +/- 5 V, 0.16 mV, 0...5 V0.13 mV, 1...5 V0.61 µA, +/- 20 mA, 0.61 µA, 0...2 mA0.49 µA, 4...20 mA
Measurement Error<= 0.05 % FS 25 °C, <= 0.05 % FS 25 °C, <= 0.1 % FS - 20…60 °C, <= 0.1 % FS - 20…60 °C<= 0.05 % FS 25 °C, <= 0.05 % FS 25 °C, <= 0.1 % FS - 20…60 °C, <= 0.1 % FS - 20…60 °C
Power Supply Typebus power from power supply bus (24 Vdc), field power from power supply field (24 Vdc)
Certificate AgencyCE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Carbon Footprint Of The Distribution Phase [A4]0.19421634948392016, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.00030090781799237874
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]20 kg CO2 eq., 20.211086378297914
Local Publishable Date2026-01-12
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Device ApplicationIndustrial Application
Hot Swapping Fallbackyes
Isolation Between Channels And Bus1500 V AC
Local Signalling1 LED green module operating (RUN)1 LED per channel green channel diagnostic1 LED red module error (ERR)
Operating ModeSynchronous/Isochronous/Asynchronous
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentconformal coating
ReturnabilityYes
Sensor Power Supply19.2-30 V DC sensor power supply24-24 V DC Loop power
Software Versionv6.1
Temperature Drift± 0.001 % FS/ °C± 0.001 % FS/ °C
Type Of Cableshielded cable
Vibration Resistance1 g without accessory2 g with accessory
Analogue Input Type 9 Analogue Input Typevoltage
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh37.8432
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal30 mm
Package Weight(Lbs)148.000 g
Warranty (In Months)18
Environment Attributes Main
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C-40-70 °C
- Circularity Profile
- ENVEOLI2410004EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2410004EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint30.397501909362244
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2410004EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product CompatibilityNTSN.....
Relative Humidity5-95 % without condensation
Pep Verification Date2024-10-08
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- analog input module
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Input Attributes
- Analogue Input Type
- current +/- 20 mA, current 0...20 mA, current 4...20 mAvoltage +/- 10 V, voltage 0...10 V, voltage +/- 5 V, voltage 0...5 V, voltage 1...5 V
- Input Impedance
- > 10 MOhm in voltage mode, > 10 MOhm in voltage mode> 10 MOhm in voltage mode, > 10 MOhm in voltage mode250 Ohm + internal current protector 10 Ohm typical
- Permitted Overload On Inputs
- 30 V maximum voltage, 30 V at 50 mA maximum current
- Analogue Input Resolution
- 15 bits + sign
Input Diagnosticunderflow error per channel, overflow error per channel, Broken wire error per channel, Hardware error per channel, Calibration error per channel, Loop power supply error per channel
Input Protection Typeover current / miswiring protection per channel for current input, over voltage / miswiring protection per channel for voltage input
Analogue Input Number2

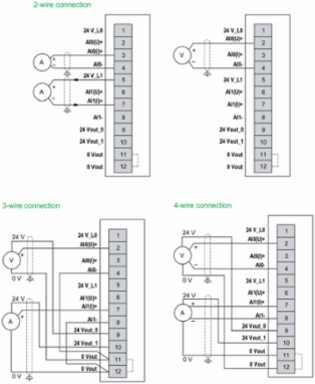

Input Wiring Mode2, 3 or 4 wires
