Schneider Electric LV429489 Earth-leakage add-on protection module VigiPacT, ComPacT NSX 100/160, 200VAC to 440VAC, 30mA to 30A, 4 poles
- MPN: LV429489
- PPN: SCH-LV429489
CAD
$3033.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

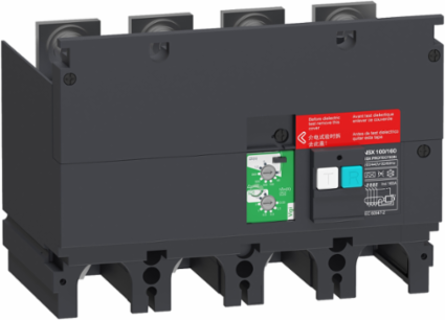

This is a Vigi add-on module for ComPact NSX 100/160 that provides an earth-leakage protection. It is used for 4 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France, Italy, Poland, United States
Complementary Attributes
- Line Rated Current
- 100 A, 160 A
Maximum Breaking Time800 ms
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Poles Description
- 4P
- Earth-leakage Sensitivity
- 0.03 A class A, 0., 0., 0.5 A class A, 1 A class A, 3 A class A10 A class AC, 30 A class AC
- Earth-leakage Protection Class
- class A, class AC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3 kg CO2 eq., 2.6656528419108385
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 8 kg CO2 eq., 7.665383259172192
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- VigiPacT
- Energy Efficiency Optimized
- False
- Network Type
- AC
- Overvoltage Category
- IV
- Product Or Component Type
- Vigi add-on
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 30 kg CO2 eq.
- Rated Operational Voltage 29 Rated Operational Voltage
- 200...440 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits and people and premises at risk of fire or explosion against insulation defects in circuit with assigned voltage 200 - 440V and rated current 400A-630A.& 10& 10It is compliant with IEC 60947-2 standard.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; IT
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 77
- [Ue] Rated Operational Voltage
- 200...440 V AC 50/60 Hz IEC 60947-2
- Earth-leakage Protection
- with
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 1.299 kg
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 19.13
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 206.01
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 2.7524
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 93.588
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 93.588
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Range Of ProductComPact NSX100...250
[Δt] Residual Earth-leakage Time Delay Adjustment0-0 ms, 60-60 ms, 150-150 ms, 300-300 ms, 500-500 ms, 800-800 ms, 1.2-1.2 s, 4-4 s
Carbon Footprint Of The Distribution Phase [A4]0.16986643438838048, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1672526572076232, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]19 kg CO2 eq., 19.13
Local Publishable Date2025-07-10
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Use Carbon Footprint19.13
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2309055EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2102
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Applicationwiring
Electrical Shock Protection Classclass II
Network Frequency50/60 Hz
Number Of Poles4P
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2309055EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Certificate AgencyIEC 60947-2
Residual Earth-leakage Time Delay Adjustment Typeadjustable
Residual Earth-leakage Sensitity Adjustment Typeadjustable
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]19.104
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]487.37
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]28.443
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]580.96
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]487.37
Customs Code8536308000
