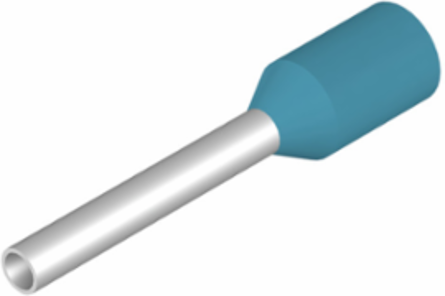

Weidmuller 9021050000 H0,75/16T HBL
- MPN: 9021050000
- PPN: WDM-9021050000
CAD
$0.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wire-end ferrule, insulated, 12 mm, 10 mm, Light Blue
Documentation & Downloads
Specifications
Approvals
- Approvals
- CCSAUS, UR
- UL File Number Search
- E354986
ROHSConform
Dimensions And Weights
- Width
- 16 mm
- Net weight
- 0.097 g
Width (inches)0.63 inch
Classifications
- ETIM 6.0
- EC000005
- eClass 9.0
- 27-40-02-01
- eClass 10.0
- 27-40-02-01
ETIM 7.0EC000005
eClass 9.127-40-02-01
UNSPSC31-16-31-02
Technical Data
- Version
- insulated
Wire-End Ferrules
- Collar diameter (D2)
- 2.8 mm
- Conductor cross-section
- 0.75 mm²
- Contact surface length (L2)
- 10 mm
- Metal sleeve thickness (S1)
- 0.15 mm
- Plastic collar thickness (S2)
- 0.25 mm
- Wire connection cross section AWG, max.
- AWG 18
Colour codeTelemecanique
Contact surface diameter (D1)1.2 mm
L1 in mm16 mm
Military designationT 20A 004 A
Stripping length12 mm
