Weidmuller 1496520000 KRN-M12/-25
- MPN: 1496520000
- PPN: WDM-1496520000
CAD
$3.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

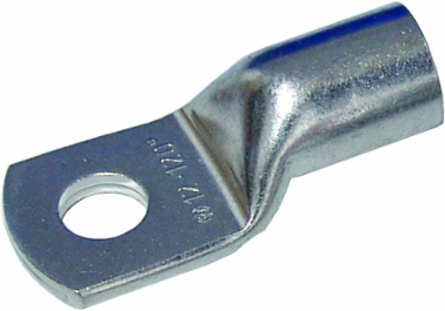

cable lug, terminal end,25 mm²
Documentation & Downloads
Specifications
Connectors

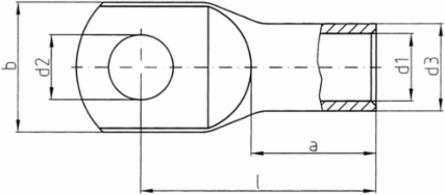

- Conductor cross-section
- 25 mm²
- Flange width (b)
- 20 mm
- Inside diameter of flange (d2)
- 13 mm
- Insulation
- not available
- Shaft length (a)
- 15 mm
Connection length (I)36 mm
HoleM 12
Inside diameter of shaft (d1)7 mm
Outside diameter of shaft (d3)10 mm
Approvals
- Approvals
- CULUS
- UL File Number Search
- E354986
ROHSConform
Dimensions And Weights
- Weight
- 1.55 g
Net weight13.68 g
Classifications
- ETIM 6.0
- EC001051
- eClass 9.0
- 27-40-02-05
- eClass 10.0
- 27-40-02-05
ETIM 7.0EC001051
eClass 9.127-40-02-05
Technical Data
- Version
- Euro series, standard
