Weidmuller 9019240000 H10,0/22D R
- MPN: 9019240000
- PPN: WDM-9019240000
CAD
$0.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

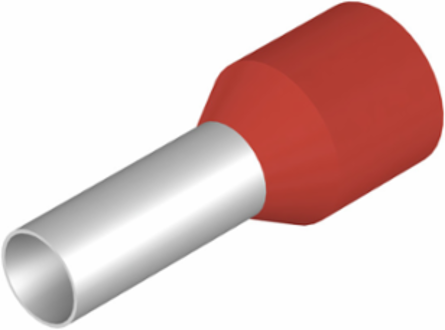

Wire-end ferrule, insulated, 15 mm, 12 mm, red
Documentation & Downloads
Specifications
Approvals
| Approvals | BW, CCSAUS, CULUS, UR, VDE |
|---|---|
| UL File Number Search | E499744 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 22 mm |
|---|---|
| Net weight | 0.54 g |
| Width (inches) | 0.866 inch |
|---|
Classifications
| ETIM 6.0 | EC000005 |
|---|---|
| eClass 9.0 | 27-40-02-01 |
| eClass 10.0 | 27-40-02-01 |
| ETIM 7.0 | EC000005 |
|---|---|
| eClass 9.1 | 27-40-02-01 |
| UNSPSC | 31-16-31-02 |
Technical Data
| Version | insulated |
|---|
Wire-End Ferrules
| Collar diameter (D2) | 7.6 mm |
|---|---|
| Conductor cross-section | 10 mm² |
| Contact surface length (L2) | 12 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.4 mm |
| Wire connection cross section AWG, max. | AWG 7 |
| Colour code | DIN |
|---|---|
| Contact surface diameter (D1) | 4.5 mm |
| L1 in mm | 22 mm |
| Military designation | T 20A 024 A |
| Stripping length | 15 mm |
