Weidmuller 9019100000 H1,0/16D R
- MPN: 9019100000
- PPN: WDM-9019100000
CAD
$0.04
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

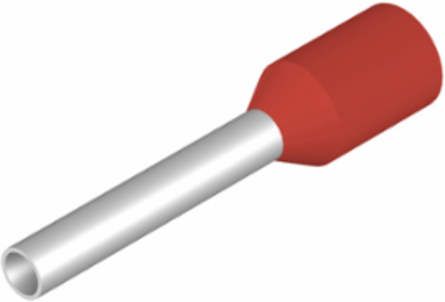

Wire-end ferrule, insulated, 12 mm, 10 mm, red
Documentation & Downloads
Specifications
Additional
| Contact Surface Length | 10 mm |
|---|---|
| Wire Connection Cross Section | AWG 17 |
| Net Weight | 0.11 g |
| Plastic Collar Thickness | 0.25 mm |
| Metal Sleeve Thickness | 0.15 mm |
| Approvals | BW, CCSAUS, CULUS, UR, VDE |
| Colour | Red |
| Overall Length | 16 mm |
|---|---|
| Contact Surface Diameter | 1.4 mm |
| Stripping Length | 12 mm |
| Collar Diameter | 3 mm |
| Conductor Cross Section | 1 mm2 |
| Compliance | RoHS Conform |
