Weidmuller 9021180000 H16,0/28T W
- MPN: 9021180000
- PPN: WDM-9021180000
CAD
$0.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

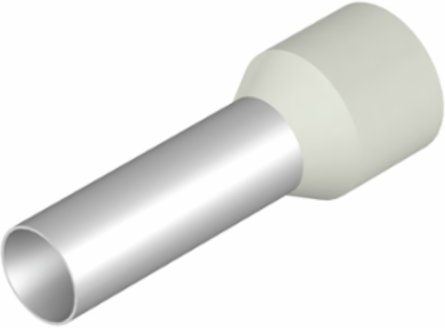

Wire-end ferrule, insulated, 21 mm, 18 mm, white
Documentation & Downloads
Specifications
Approvals
| Approvals | CCSAUS, UR |
|---|---|
| UL File Number Search | E354986 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 28 mm |
|---|---|
| Net weight | 0.88 g |
| Width (inches) | 1.102 inch |
|---|
Classifications
| ETIM 6.0 | EC000005 |
|---|---|
| eClass 9.0 | 27-40-02-01 |
| eClass 10.0 | 27-40-02-01 |
| ETIM 7.0 | EC000005 |
|---|---|
| eClass 9.1 | 27-40-02-01 |
| UNSPSC | 31-16-31-02 |
Technical Data
| Version | insulated |
|---|
Wire-End Ferrules
| Collar diameter (D2) | 8.8 mm |
|---|---|
| Conductor cross-section | 16 mm² |
| Contact surface length (L2) | 18 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.4 mm |
| Wire connection cross section AWG, max. | AWG 6 |
| Colour code | Telemecanique |
|---|---|
| Contact surface diameter (D1) | 5.8 mm |
| L1 in mm | 28 mm |
| Military designation | T 20A 025 A |
| Stripping length | 21 mm |
