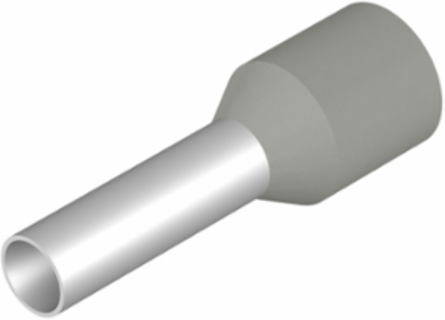

Weidmuller 9426770000 H2,5/14TS GR
- MPN: 9426770000
- PPN: WDM-9426770000
CAD
$0.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wire-end ferrule, insulated, 10 mm, 8 mm, grey
Documentation & Downloads
Specifications
Approvals
| Approvals | CCSAUS |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 14 mm |
|---|---|
| Net weight | 0.144 g |
| Width (inches) | 0.551 inch |
|---|
Classifications
| ETIM 6.0 | EC000005 |
|---|---|
| eClass 9.0 | 27-40-02-01 |
| eClass 10.0 | 27-40-02-01 |
| ETIM 7.0 | EC000005 |
|---|---|
| eClass 9.1 | 27-40-02-01 |
| UNSPSC | 31-16-31-02 |
Technical Data
| Version | insulated |
|---|
Wire-End Ferrules
| Collar diameter (D2) | 4 mm |
|---|---|
| Conductor cross-section | 2.5 mm² |
| Contact surface length (L2) | 8 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Stripping length | 10 mm |
| Colour code | Weidmüller |
|---|---|
| Contact surface diameter (D1) | 2.2 mm |
| L1 in mm | 14 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Wire connection cross section AWG, max. | AWG 14 |
