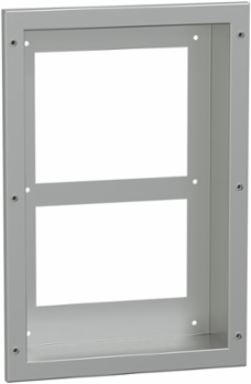

Schneider Electric NSYCUACC038DG Half flush mounting kit for Stainless steel Side Connected Cooling Unit, Climasys CU, 350 - 600W

MPN: NSYCUACC038DG
PPN: SCH-NSYCUACC038DG
UNSPSC: 31162313

$1138.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Accessory is a Half flush mounting kit for Stainless steel Side Connected Cooling Unit. It's made with stainless steel. Its dimensions (HxWxD) are 522x352x91mm. Its IP index is IP55.

Features

Recommended to save time and ease the installation of a new Cooling unt in place of an existing Cooling Unit
Easy installation
Kit to mount indoor Side Stainless steel Connected Cooling Unit in Half flush position
Fine brushed Stainless Steel aspect

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Malta
Width	13.86 in

Height	20.55 in
Depth	91 mm

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Device Composition	1 mounting adaptor inside the enclosure, 1 gasket inside the enclosure, 6 bolt outside
Product Destination	mounting adaptor side cooling unit 350 W, side cooling unit 650 W
Local Publishable Date	2025-07-10
Pre Comm Date	2023-06-16
Weee Scope	Out
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Material	stainless steel
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	mounting adaptor
Range	ClimaSys
Returnability	No
Height Nominal	522 mm
Width Nominal	352 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Mounting Location	door of enclosure, side of enclosure
Local Data Status	Publishable
Pre Comm Announcement Date	2023-06-16
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2327
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Fixing Mode	by bolt
Offer Type	complementary
Product Name	CU
Quantity Per Set	1
Range Of Product	ClimaSys
Sustainable Packaging	No
Height Useful	522 mm
Width Real	352 mm
Customs Code	7326908688

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes

Take Back	No
Recycled Metal Content At Cr Level	0 %
Ip Degree Of Protection	IP55
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
