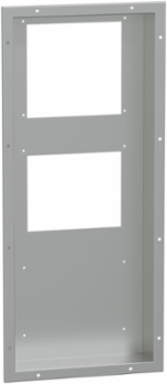

Schneider Electric NSYCUACC040DG Half flush mounting kit for Stainless steel Side Connected Cooling Unit, Climasys CU, 1,2 - 1,6k - 2kW
- MPN: NSYCUACC040DG
- PPN: SCH-NSYCUACC040DG
CAD
$1714.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Accessory is a Half flush mounting kit for Stainless steel Side Connected Cooling Unit. It's made with stainless steel. Its dimensions (HxWxD) are 1070x475x115mm. Its IP index is IP55.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Malta
- Width
- 18.7 in
Height42.13 in
Depth115 mm
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Device Composition
- 1 mounting adaptor inside the enclosure, 1 gasket inside the enclosure, 12 bolt outside
- Product Destination
- mounting adaptor side cooling unit 1250 W, side cooling unit 1650 W, side cooling unit 2000 W
- Local Publishable Date
- 2025-07-10
- Pre Comm Date
- 2023-06-16
- Stocking Flag
- Y
- Weee Scope
- Out
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Material
- stainless steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- mounting adaptor
- Range
- ClimaSys
- Returnability
- No
- Height Nominal
- 1070 mm
- Width Nominal
- 475 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Mounting Locationdoor of enclosure, side of enclosure
Local Data StatusPublishable
Pre Comm Announcement Date2023-06-16
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2327
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Fixing Modeby bolt
Offer Typecomplementary
Product NameCU
Quantity Per Set1
Range Of ProductClimaSys
Sustainable PackagingNo
Height Useful1070 mm
Width Real475 mm
Package Weight(Lbs)10.500 kg
Warranty (In Months)18
Customs Code7326908688
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Ip Degree Of ProtectionIP55
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mounting adaptor
Range Of ProductClimaSys
ETIM
- ETIM 8
- EC011603
ETIM 9EC011603
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
