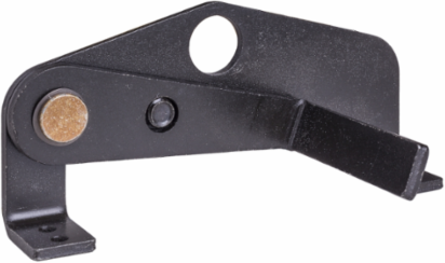

Square D HPANE Circuit breaker accessory, NA/NC/NE/NX, handle padlock, fixed, lock ON or OFF, 2/3 pole
- MPN: HPANE
- UPC: 785901296751
- PPN: SCH-HPANE
CAD
$124.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D NA/NC/NE/NX molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. This is a handle padlock attachment for NA/NC/NE/NX circuit breakers. This unit is a fixed lock ON or OFF for 2 or 3 pole NA/NC/NE/NX circuit breakers. This device is UL and CSA listed.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Important Information Attributes
| Certificate Agency | CSA, UL Listed, IEC |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 3 kg CO2 eq., 3.391969932864633 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 9 kg CO2 eq., 9.231241412339646 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2206027_V2 |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Circuit Breaker Type | standard |
| Locking Options Description | padlocking device |
| Product Destination | NA/NC/NE/NX circuit breaker |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 304 kg CO2 eq. |
| Pep Code | ENVPEP2206027EN |
| Pep Verification Date | 2025-05-01 |
| Psr Version | PSR-0005-ed3-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908120 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.3812916237468922, 0.4 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.01827056403892661, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 291 kg CO2 eq., 291.16885557321433 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1917 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 45 |
| Package Weight(Lbs) | 80.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 304.1916291062044 |
| Environmental Disclosure | ENVPEP2206027EN |
| Packaging Made With Recycled Cardboard | Yes |
| Pep Code | ENVPEP2206027EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2206027_V2 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Pep Verification Date | 2025-05-01 |
| Psr Version | PSR-0005-ed3-2023 12 08 |
ETIM
| ETIM 8 | EC000327 |
|---|
| ETIM 9 | EC000327 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
