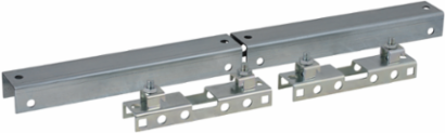

Square D HF43SH I-Line Busway Hanger, 800 Amp Rated, Aluminum, 9.74 Inch Width, 7.84 Inch Length

MPN: HF43SH
PPN: SCH-HF43SH
UNSPSC: 39131702

$327.32

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for efficient power distribution, the HF43SH I-Line Busway Hanger from Schneider Electric is designed to support busway systems with reliable stability. Rated for 800 amps, this aluminum hanger offers robust structural integrity while adhering to space constraints, measuring 9.74 inches in width and 7.84 inches in length. Ideal for various industrial settings, it ensures a secure installation that enhances the overall performance of busway applications, making it a vital component for electrical infrastructure projects.

Features

Supports and secures busway sections during installation.
Maintains proper alignment and spacing between busway runs.
Distributes weight evenly to prevent stress on joints and connections.
Facilitates safe suspension from ceilings or structural elements.
This product is TAA, and BAA via COTS compliant.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Compliance	\|TAA Compliant \| BAA Compliant via COTS

Complementary Attributes

Line Rated Current	800-800 A aluminium1000-1000 A copper

Important Information Attributes

Persona Type Ids	LC, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL 857CSA C22.2 No 27:1994, IEC 61439-6
Local Publishable Date	2026-09-04
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	seismic
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	I-Line
Sustainable Packaging	No
Length Total	7.84 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1913
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Product Or Component Type	hanger
Returnability	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	9.74 in
Customs Code	7326908688

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP1407014EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1407014EN

Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
