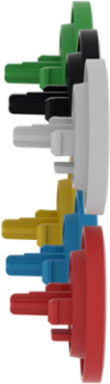

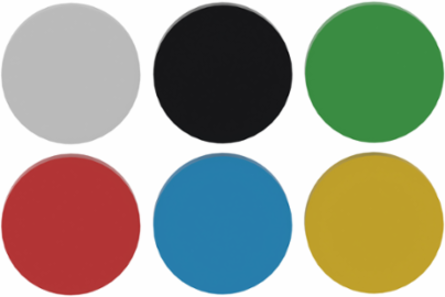

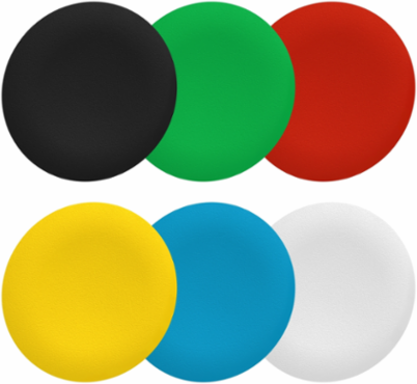

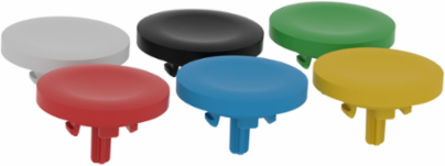

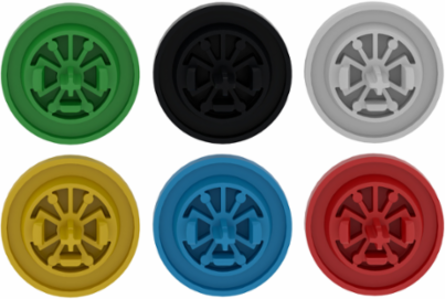

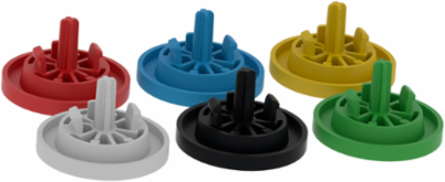

Schneider Electric ZBAF9 Push button cap, Harmony XB5, Harmony XB4, set of 6 colors plain cap for flush mounted push button

MPN: ZBAF9
PPN: SCH-ZBAF9
UNSPSC: 39122221

$15.69

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This pushbutton cap set provides an ergonomic interface for controlling your machine thanks to its flush element. The caps set contains 6 unmarked caps with different colors to allow users to have diverse options to suit their machines operations and functions. It comes with antimicrobial characteristics. They are easily installed and replaced on compatible complete push-button units.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Excellent mechanical connection with operator head
A large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	13 g

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	1, no
Cap Operator Or Lens Color	6 colors choice
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.016443535
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.1 kg CO2 eq., 0.0921442467
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308035EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Operator Profile	flush
Product Or Component Type	push button cap
Sale Per Indivisible Quantity	1
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.1 kg CO2 eq.
Data Source	extrapolated product
Accessory / Separate Part Category	marking accessory
Accessory / Separate Part Type	blank push-button cap
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Main Group	push-button, selector switch
Carbon Footprint Of The Distribution Phase A4	0.0017000237, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0026074021, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-08-10
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	Yes
Shape Of Signaling Unit Head	round
Sustainable Packaging	Yes
Database Version	2022-01
Certificate Agency	ISO 21702ISO 22196:2011
Accessory / Separate Part Destination	push-button head
Cap/Operator Or Lens Colour	6 colors choice
Customs Code	8538906000
Functional Unit Description	This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional Unit Unit	Unit

Environment Attributes Main

Product Compatibility	ZB4FA0, ZB5FA0
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308035EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.1128952076
Environmental Disclosure	ENVPEP2308035EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2308035EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
