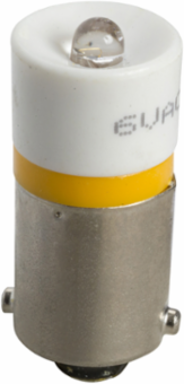

Schneider Electric DL1CJ0245 Harmony XB4 LED Bulb BA 9s Orange 24V AC/DC
- MPN: DL1CJ0245
- PPN: SCH-DL1CJ0245
CAD
$43.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4 Integral LED is supplied with 24V AC/DC BA9s base and provides orange light. It is compatible with Harmony XB4 and XB5 illuminated push buttons. It is easily installed into a standard 22mm diameter controls and signalling units. Its simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. It features high brightness for easy identification of function and operation mode.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes
- Signalling Color
- orange
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Supply Voltage
- 24 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.000319922, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0002940351, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 4 kg CO2 eq., 3.9884222768
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bulb Base
- BA 9s
- Product Or Component Type
- LED bulb
- Sale Per Indivisible Quantity
- 1
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1808008_V2-EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Accessory / Separate Part Destination
- illuminated push-button
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
[Us] Rated Supply Voltage24 V, 24 V AC/DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0033319688
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0 kg CO2 eq., 0.0150520468
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category3
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Software Versionv5.9.4
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Signalling Colororange
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional-unit UnitUnit
Energy Consumption On Product Lifetime, In Kwh8.4096
Accessory / Separate Part Categorylighting accessory
Accessory / Separate Part TypeLED bulb
Package Weight(Lbs)2.0 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 4.0074202495
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Reach Free ShvcYes
China Rohs RegulationX
Environmental DisclosureENVPEP1808008_V2-EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1808008_V2-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- LED bulb
ETIM
- ETIM 8
- EC000399
ETIM 9EC000399
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
