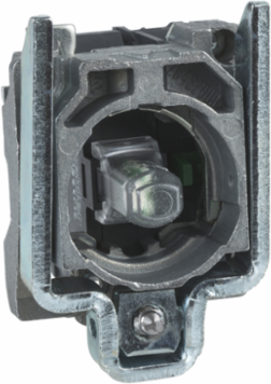

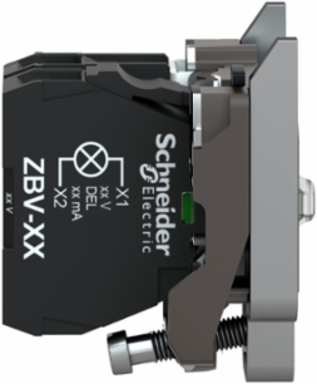

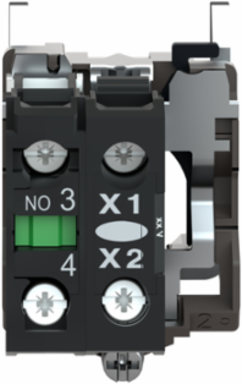

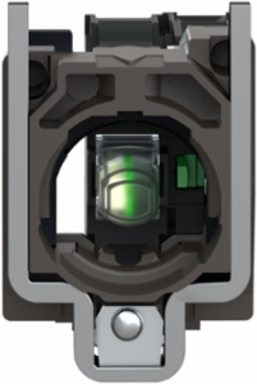

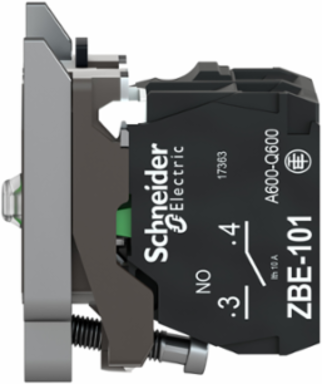

Schneider Electric ZB4BW0B51 Light block with body fixing collar, Harmony XB4, metal, orange, integral LED, 24V AC DC, 1NO
Schneider Electric ZB4BW0B51 Light block with body fixing collar, Harmony XB4, metal, orange, integral LED, 24V AC DC, 1NO
- MPN: ZB4BW0B51
- PPN: SCH-ZB4BW0B51
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$72.98/ EA
Description
This Harmony XB4, light block with body/fixing collar is orange, operates with an integral LED. It has 1 x NO contact and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Specifications
Specifications
- Range Of Product
- Harmony XB4
- Light Block Supply
- direct
- Fixing Collar Material
- zamak
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
- Sale Per Indivisible Quantity
- 1
- Light Source Colour
- orange
- [Us] Rated Supply Voltage
- 24 V AC/DC 50/60 Hz
Light Sourceprotected LED
Product Or Component Typecomplete body/contact assembly and light block
Head Typestandard
Contacts Type And Composition1 NO
Contact Operationslow-break
Device Short NameZB4
Bulb Baseintegral LED
Contractual warranty
- Warranty
- 18 months
Complementary
- Contacts Usage
- standard
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- Operating Travel
- 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Positive Opening
- without
- Net Weight
- 0.064 kg
- Cad Overall Height
- 47 mm
- Device Presentation
- basic sub-assemblies
- Service Life
- 100000 h at rated voltage and 25 °C
- [Ui] Rated Insulation Voltage
- 600 V 3)EN 60947-1
- Operating Torque
- 0.05 N.m NO changing electrical state
- Supply Voltage Limits
- 19.2-30 V DC || 21.6-26.4 V AC
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
- Cad Overall Width
- 30 mm
Terminals Description Iso N°1(13-14)NO
Operating Force2.3 N NO changing electrical state
Contacts Materialsilver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV EN 60947-1
Current Consumption18 mA
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Surge Withstand1 kV IEC 61000-4-5
Signalling Typesteady
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Mechanical Durability5000000 cycles
Tightening Torque0.8-1.2 N.m EN 60947-1
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- LROS (Lloyds register of shipping) || GL || UL listed || DNV || CSA || BV
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class I IEC 60536
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-40-70 °C
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Protective TreatmentTH
Electromagnetic Emissionclass B IEC 55011
